Intermatic

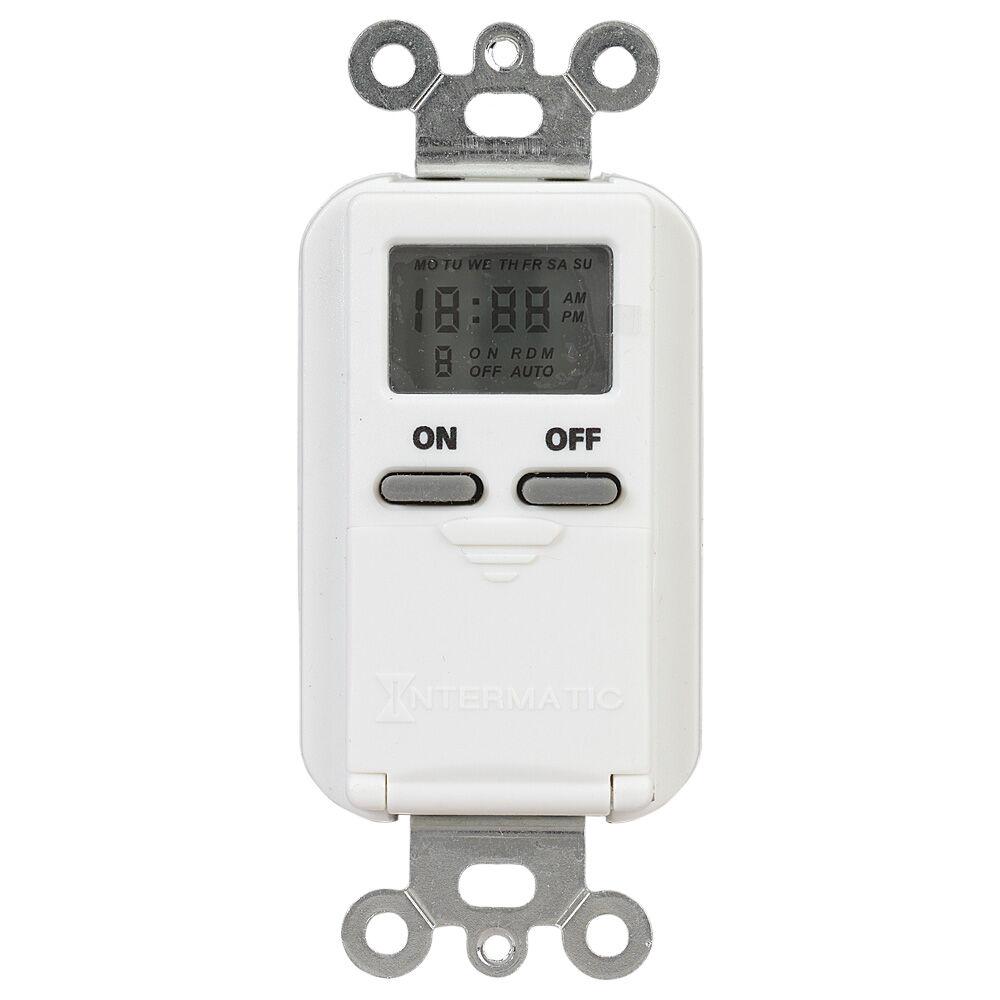

7-Day Standard Programmable Timer, 125 VAC, 15A,
Part Number: EI500WC
UPC: 00078275105232
Call for Price
- Manufacturer availability unknown.
Quantity:
Product Overview
7-Day Standard Programmable Timer, 125 VAC, 15A, White
Specifications
Details
Product Height:
4.88"
Product Width:
3.00"
Product Length:
2.10"
Category:
Lighting Controls
Subcategory:
Lightswitches
Action:
1 x SPST
Amperage Rating:
15
Application:
Incandescent Lighting, Fluorescent Lighting, HVACR, CFL Lighting, LED Lighting
Brand Name:
Intermatic
Brochure:
Contact Configuration:
1 NO
Contact Rating:
15 AMP @ 120 VAC (Resistive Heater), 8.3 AMP @ 120 VAC (Tungsten Incandescent), 8 AMP @ 120 VAC (Ballast Magnetic)
Country Of Origin:
CN
Installation Link:
Mounting:
Wall Mount
Number Of Poles:
1
Operating Temperature:
+32 to +122 DEG F, 0 to +50 DEG C
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
No
Size:
2.75 HEIGHT X 1.75 WIDTH X 1.36 DEPTH IN, 69.85 HEIGHT X 44.45 WIDTH X 34.54 DEPTH MM
Spec Sheet:
Special Features:
Features: Compact and Quiet Low Profile Design, Continuously Displays Time of Day and Day of Week and Load Status, Internal Rechargeable Battery - Minimum 36 Hour Backup, 1 Year Warranty
Standard:
cULus Listed, HVACR
Stock Type:
Shelf Stock
Timer Duration:
7
Timing Range:
1 MIN - 7 DAYS
Type:
Decorator Digital In-Wall
UNSPSC:
39122208
Voltage Rating:
120
Wall Plate Color:
White
Wattage:
1875
Weight:
.250 L
