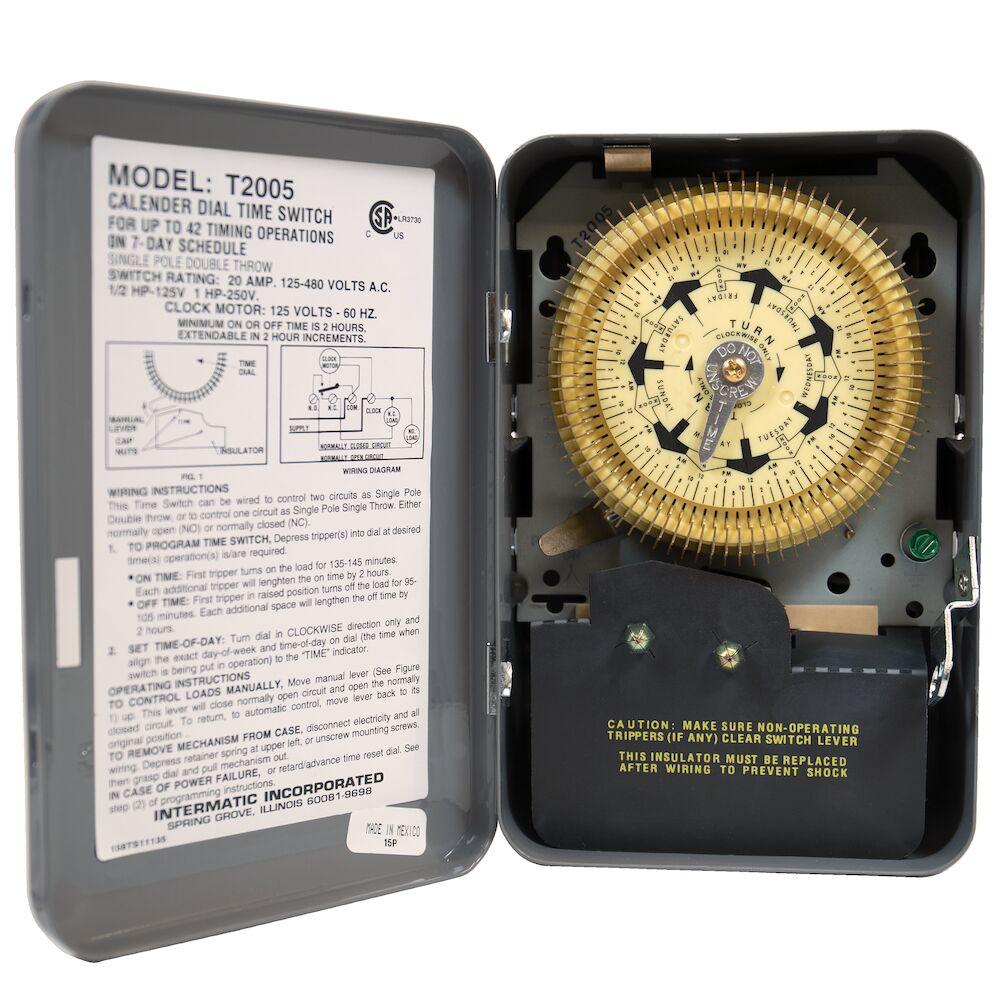

7-Day Mechanical Time Switch, 120 VAC, 60Hz, SPD

Intermatic
7-Day Mechanical Time Switch, 120 VAC, 60Hz, SPD

Part Number: T2005
UPC: 00078275460010
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
7-Day Mechanical Time Switch, 120 VAC, 60Hz, SPDT, Indoor Metal Enclosure, 2 Hour Interval
Specifications
Details
Product Height:
8.25"
Product Width:
3.50"
Product Length:
5.50"
Category:
Lighting Controls
Subcategory:
Lightswitches
Action:
SPDT
Amperage Rating:
20
Application:
Indoor
Brand Name:
Intermatic
Connection:
Screw Terminal
Contact Configuration:
1 NO/1 NC
Contact Rating:
20 AMP @ 120, 208 - 277 VAC (Resistive)
Country Of Origin:
MX
Enclosure:
NEMA 1
Installation Link:
Installation Instructions
Mounting:
Wall Mount
Number Of Poles:
1
Operating Temperature:
-40 to +130 DEG F, -40 to +54 DEG C
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
No
Spec Sheet:
Spec Link
Special Features:
Features: Up to 84 Cycles/Week, 2 HR Increment
Standard:
cCSAus Certified
Stock Type:
Shelf Stock
Timer Duration:
22 HR/7 DAYS
Timing Range:
2 - 22 HR/7 DAYS
Type:
Mechanical
UNSPSC:
39122208
Voltage Rating:
120
Wattage:
3
Weight:
2.730 L
