480V 50/60Hz 7200W "T" SWIVEL MOUNTING

Intermatic
480V 50/60Hz 7200W "T" SWIVEL MOUNTING

Part Number: K4235
UPC: 00078275042889
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Info & Guides
File

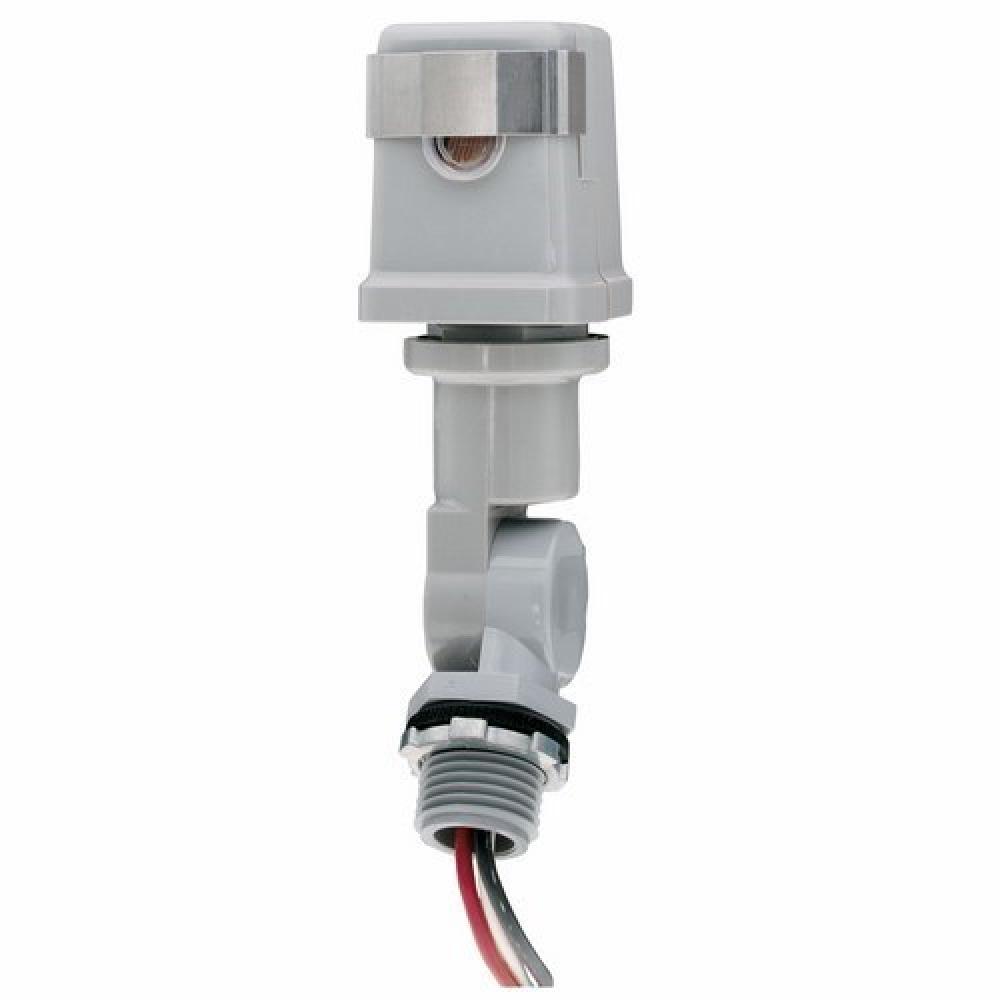

The 480V 50/60Hz 7200W "T" SWIVEL MOUNTING The K4200 Series Photo Controls feature stern and swivel mounting, with thermal-type controls. Thermal-type photo controls, which are available in single or multi-voltage models, provide dusk-to-dawn lighting control and a delay action, which eliminates loads switching OFF due to car headlights, and lightning. The thermal-type controls feature a cadmium sulfide photocell and a sonic-welded polycarbonate case and lens to seal out moisture. The design utilizes a dual temperature compensating bi-metal and composite resistor for reliable long life operation over ambient temperature extremes.
Specifications
Details
Product Height:
4.88"
Product Width:
1.80"
Electrical Category:
Control And Automation
Electrical Subcategory:
Controls And Accessories
Electrical Subtype:
Photocontrols
Application:
Dusk to Dawn Lighting Control
Brand Name:
Intermatic
Connection:
Color Coded Lead
Country Of Origin:
MX
Frequency Rating:
50/60
Length:
3.0000 IN
Mounting:
Stem and Swivel Fixed Mount
Operating Temperature:
-40 to +158 DEG F -40 to +70 DEG C
Order Minimum:
12.000 EA
Order Multiple:
12.000 EA
Power Consumption:
2
RoHS Compliance:
Contact Manufacturer
Sensitivity:
1-5 FC ON, 3-15 FC OFF
Sensor:
Thermal Type Photo Control (Cadmium Sulfide)
Size:
3 DIAMETER X 6-1/4 HEIGHT IN, 7.6 DIAMETER X 15.9 HEIGHT CM
Source:
Automatic Switching
Spec Sheet:
Spec Link
Special Features:
Features: Cadmium Sulfide Photocell, Sonic-Welded Polycarbonate Housing, 6 IN Wire Leads
Standard:
CSA, Title CA 20 Listed, California Title 24 Compliant
Stock Type:
Shelf Stock
Supply Voltage:
480
Type:
Thermal Type Photo Cell
UNSPSC:
39121524
Weight:
0.310 L
