Intermatic

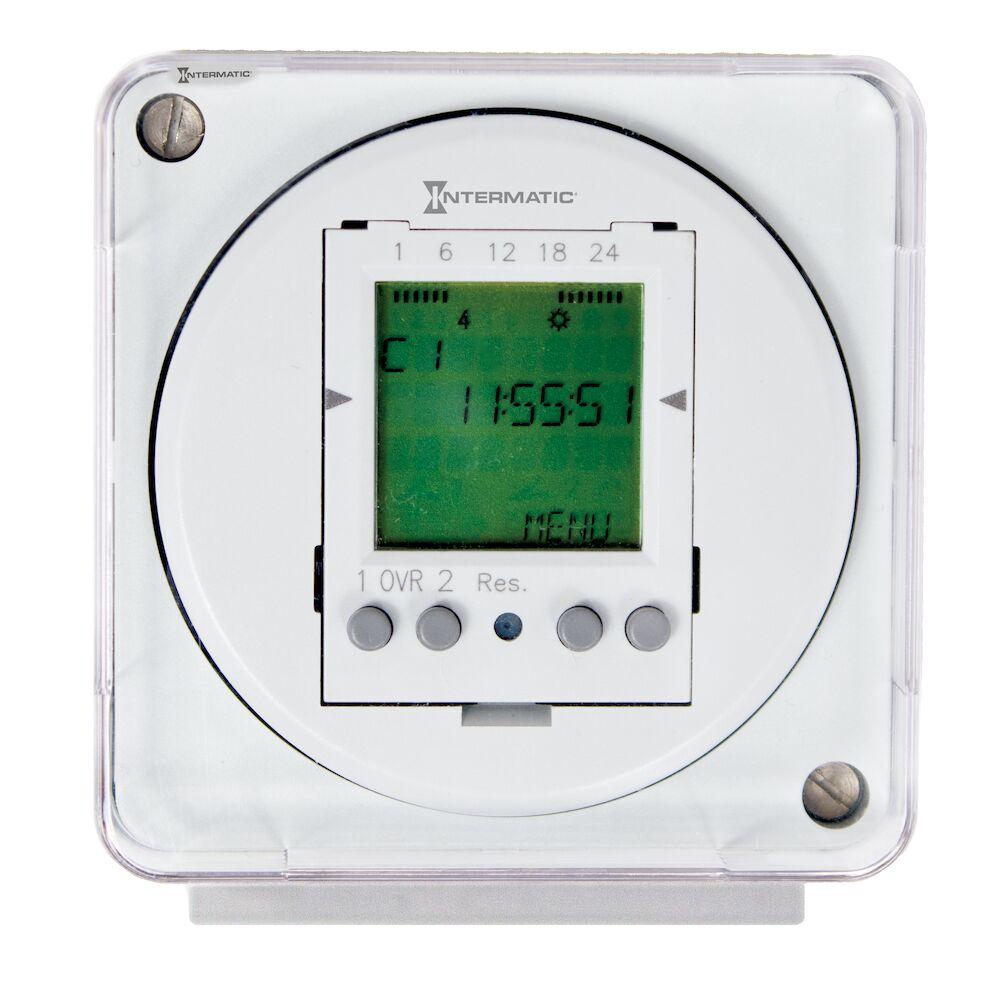

24-Hour or 7-Day 120V Electronic Surface/DIN Rai
Part Number: FM2D50-120
UPC: 00078275116290
Call for Price
- Manufacturer availability unknown.
Quantity:
Product Overview
24-Hour or 7-Day 120V Electronic Surface/DIN Rail/Flush Mount Module, 16A, 50 Setpoint Programs, 2-SPDT
Specifications
Details
Product Height:
2.63"
Product Width:
3.40"
Category:
Lighting Controls
Action:
2 x SPDT
Application:
Pumps, Fans, Heaters, HVAC, Lighting, Machinery, Commercial, Industrial, Agricultural
Brand Name:
Intermatic
Connection:
Screw Terminal
Contact Configuration:
1 NO/1 NC
Contact Rating:
16 AMP @ 277 VAC (Resistive), 12 AMP @ 120 VAC (Ballast), 8 AMP @ 240 VAC (Ballast)
Country Of Origin:
CN
Length:
4.4000 IN
Mounting:
Surface/DIN Rail Mount
Number Of Poles:
1
Operating Temperature:
-13 to +131 DEG F, -25 to +55 DEG C
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Yes
Size:
2.83 HEIGHT X 2.83 WIDTH X 2.28 DEPTH IN, 72 HEIGHT X 72 WIDTH X 58 DEPTH MM
Spec Sheet:
Special Features:
Features: Auto Daylight Saving Time (DST), 50 Setpoint Programs, 2 Preset Adjustable Block Programs, Easy-to-Follow Menu Driven Programming, Manual Override with Load Switch Indication, Battery Backup, Large LCD, Clear Dust Cover, 1 Year Warranty, Battery
Standard:
cULus Recognized E10694, California TITLE 24 Compliant, HVACR, Title CA 20 Listed
Stock Type:
Shelf Stock
Sub Brand:
Grasslin
Timer Duration:
24 HR/7 DAYS
Timing Range:
1 MIN - 24 HR/7 DAYS
Type:
2 Channel Electronic
UNSPSC:
39122208
Voltage Rating:
120
Wattage:
1000
Weight:
.250 L
