Intermatic
220v 50Hz COMBO QUICK CONNECT/SCREW TRML
Part Number: FWZ53-220/50U
UPC: 00614573250351
Call for Price
- Manufacturer availability unknown.
Quantity:
Product Overview
Info & Guides

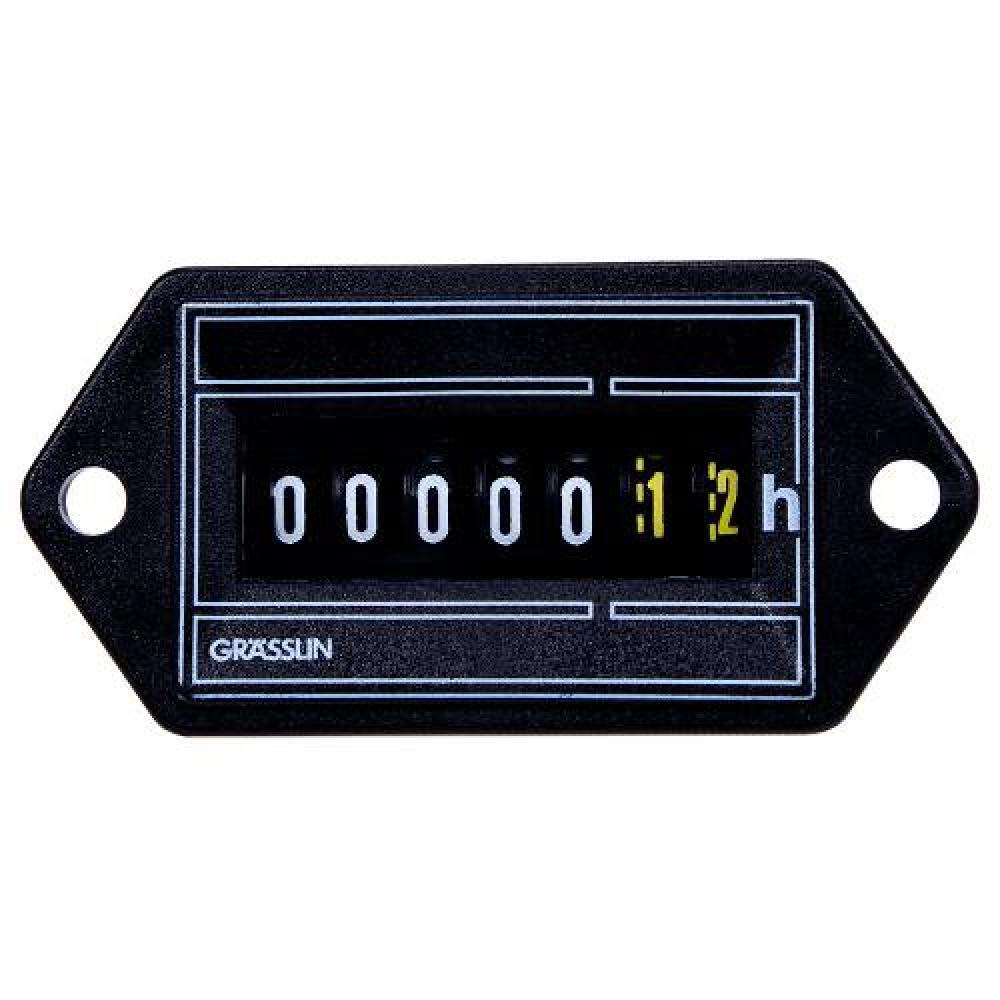

The 220v 50Hz COMBO QUICK CONNECT/SCREW TRML The FWZ53 Series AC Hour Meters are non-resetable and flush-panel mounted with watertight/dusttight sealed bezels. All models are black plastic with white numerals on black background.
Specifications
Details
Product Height:
2.25"
Product Width:
3.25"
Electrical Category:
Testing And Measuring
Electrical Subcategory:
Indicating And Recording Instruments
Electrical Subtype:
Hour Meter
Bezel Face Size:
2.09 X 1.02 IN, 36 X 24 MM
Bezel Face Type:
Rectangle
Bezel To Back Length:
2.13 IN, 54 MM
Brand Name:
Intermatic
Country Of Origin:
DE
Dimensions:
2.09 LENGTH X 1.02 WIDTH X 2.30 DEPTH IN, 53 LENGTH X 26 WIDTH X 58.3 DEPTH MM
Display:
Analog
Frequency Rating:
50
Length:
3.2500 IN
Model:
FWZ53
Mounting:
Flush-Panel Mount
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Special Features:
Features: 0.16 IN High Numerals Digits, Watertight/Dusttight Sealed Bezel, 7 Digits Measure
Standard:
UL Recognized, CSA, CE
Stock Type:
Shelf Stock
Temperature Rating:
-40 to +160 DEG F, -40 to +72 DEG C
Terminal Connection:
1/4 IN Spade and Screw Clamp
Type:
Non-Resettable, AC Hour Meter
UNSPSC:
41111949
Voltage Rating:
220
Wattage:
2
Weight:
0.150 L
