208-240V MECH DEF CTL TME/PRS INIT-TERM

Intermatic
208-240V MECH DEF CTL TME/PRS INIT-TERM

Part Number: G8145-20
UPC: 00078275127784
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Info & Guides
File

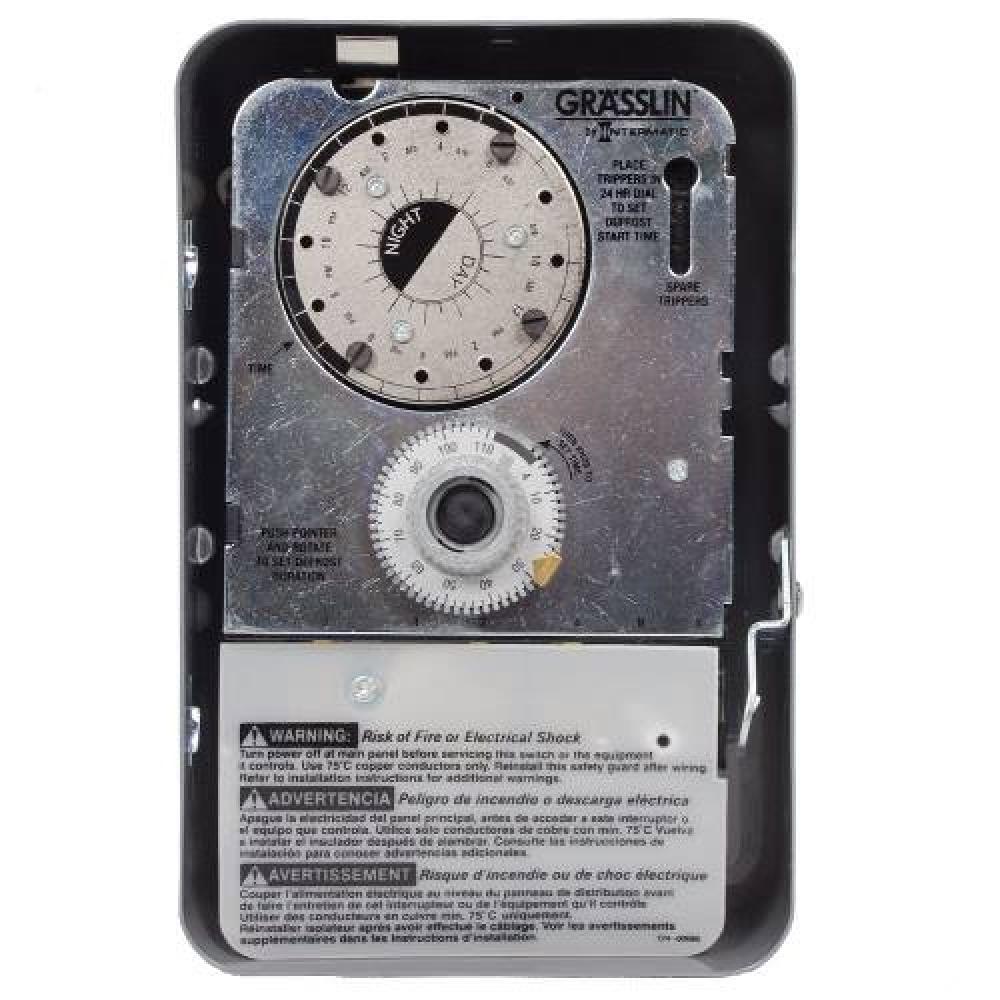

The 208-240V MECH DEF CTL TME/PRS INIT-TERM The G8000 series defrost timers come complete with an industry-leading 2-year warranty. The G8000 features heavy-duty silver-plated 40 Amp welded contacts to provide consistent switching of demanding loads. Its encapsulated design prevents dust and dirt buildup to ensure reliable and lasting performance. The G8000 easily snaps into most enclosures, allowing a quick and easy installation.
Specifications
Details
Product Height:
3.16"
Product Width:
5.28"
Category:
Lighting Controls
Subcategory:
Lightswitches
Amperage Rating:
40
Application:
Indoor, Industrial
Brand Name:
Intermatic
Contact Configuration:
1 NO/1 NC
Contact Rating:
40 AMP @ 120 - 240 VAC
Country Of Origin:
MX
Enclosure:
Type 1 Steel
Length:
8.0300 IN
Mounting:
Bracket Mount
Operating Cycles:
30000
Operating Temperature:
-40 to +104 DEG F, -40 to +40 DEG C
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
5 LENGTH X 3 WIDTH X 7-3/4 HEIGHT IN, 12.70 LENGTH X 7.62 WIDTH X 19.69 HEIGHT CM
Spec Sheet:
Spec Link
Special Features:
Features: Encapsulated Timer Module Design Prevents Dust and Dirt Buildup, Heavy-Duty Synchronous Motor for Accurate Time Keeping, Mounts in Existing Enclosures, No Tools Required, Heavy-Duty Welded And Silver-Plated 40 Amp Contacts Defrost Durations Progr
Standard:
UL873, cCSAus Certified 151753, cULus Listed SA33993
Stock Type:
Shelf Stock
Timer Duration:
110
Timing Range:
4 - 110
Type:
Mechanical Defrost
UNSPSC:
39122208
Voltage Rating:
208 - 240
Weight:
2.644 L
