Ideal Industries
TB HD TS 40 BOX
Part Number: 0222
UPC: 00781789206509
Call for Price
- Manufacturer availability unknown.
Quantity:
Painted
Phenolic
Product Overview
Info & Guides

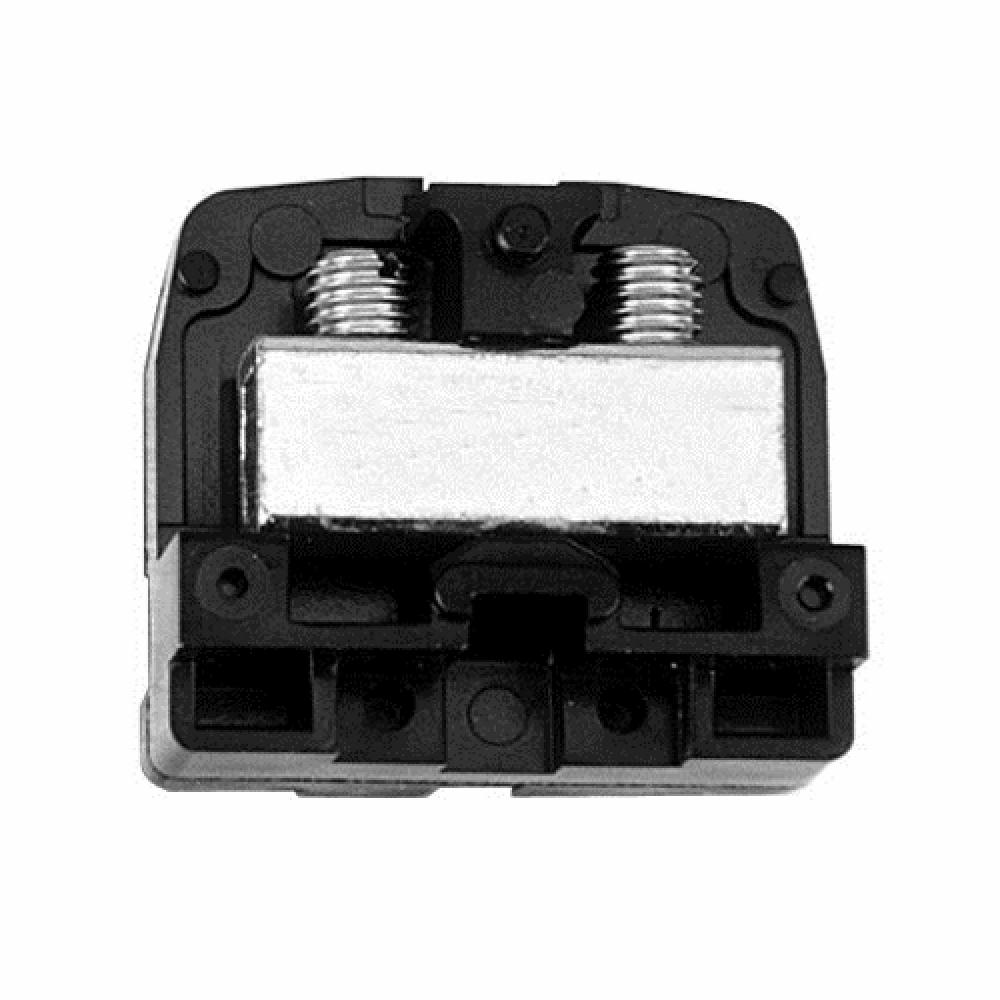

Ideal 0222 Heavy-Duty Terminal Block, Wire Size: 18 - 4 AWG, Spacing: 0.56 IN, Amperage Rating: 85 AMP, Voltage Rating: 600 V, Phenolic, Painted, Mounting: Channel Mount (Dovetail Base), Connection: Tubular Screw, 1/4-28 Slotted Headless, Wire Strip Length: 1/2 IN, Package: 40/Box, UL Listed, CSA, RU Certified, NEMA, For High Temperature, High Current Applications
Specifications
Details
Product Height:
0.12"
Product Width:
0.12"
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
Terminals And Accessories
Electrical Subtype:
Terminal Blocks
Amperage Rating:
85
Application:
For High Temperature, High Current Applications
Brand Name:
Buchanan
Connection:
Tubular Screw, 1/4-28 Slotted Headless
Country Of Origin:
MEX
Length:
0.1200 IN
Mounting:
Channel Mount (Dovetail Base)
Order Minimum:
40.000 EA
Order Multiple:
40.000 EA
RoHS Compliance:
Yes
Spacing:
0.56
Spec Sheet:
Special Features:
Three contact styles conservatively rated to 35A to 85A; Withstands temperatures up to 150 DEG C; Only one end section needed per block assembly; Sturdy block accepts single wire or combinations up to 4 AWG solid or stranded; 122 circuits per 6 FT length;
Standard:
UL Listed, CSA, RU Certified, NEMA
Stock Type:
Shelf Stock
Type:
Heavy-Duty Terminal Block
UNSPSC:
39121410
Voltage Rating:
600
Weight:
0.060 L
Wire Size:
18 - 4
