Ideal Industries
TB HD TC 40 BOX
Part Number: 0243
UPC: 00781789600291
Call for Price
- Manufacturer availability unknown.
Quantity:
Painted
Product Overview
Info & Guides

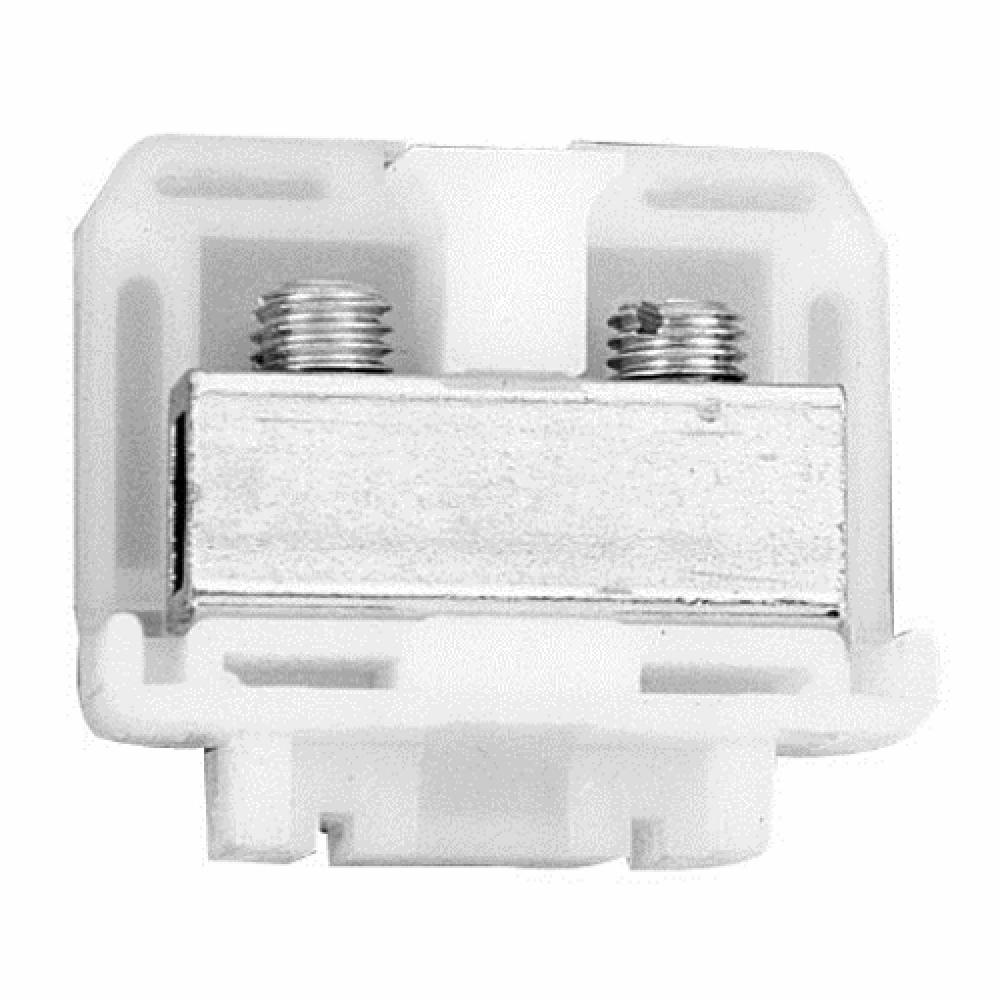

Ideal 0243 Heavy-Duty Terminal Block, Wire Size: 18 - 4 AWG, Spacing: 1/2 IN, Amperage Rating: 85 AMP, Voltage Rating: 600 V, Nylon, Painted, Mounting: Channel Mount (Dovetail Base), Connection: Tubular Screw, 1/4-28 Slotted Headless, Wire Strip Length: 1/2 IN, Package: 40/Box, UL Listed, CSA, RU Certified, NEMA
Specifications
Details
Product Height:
0.12"
Product Width:
0.12"
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
Terminals And Accessories
Electrical Subtype:
Terminal Blocks
Amperage Rating:
85
Brand Name:
Buchanan
Connection:
Tubular Screw, 1/4-28 Slotted Headless
Country Of Origin:
MEX
Length:
0.1200 IN
Material:
Nylon
Mounting:
Channel Mount (Dovetail Base)
Order Minimum:
40.000 EA
Order Multiple:
40.000 EA
RoHS Compliance:
Yes
Spacing:
1/2
Spec Sheet:
Special Features:
Three contact styles conservatively rated to 35A to 85A; Rated up to 105 DEG C; Only one end section needed per block assembly; This compact design, heavy-duty line accepts single wire or combinations up to 4 AWG, solid or stranded, 600 V; 138 circuits per
Standard:
UL Listed, CSA, RU Certified, NEMA
Stock Type:
Shelf Stock
Type:
Heavy-Duty Terminal Block
UNSPSC:
39121410
Voltage Rating:
600
Weight:
0.040 L
Wire Size:
18 - 4
