Ideal Industries
SPL CAP (100 BAG)
Part Number: 2006S
UPC: 00781789450056
Call for Price
- Manufacturer availability unknown.
Quantity:
Product Overview

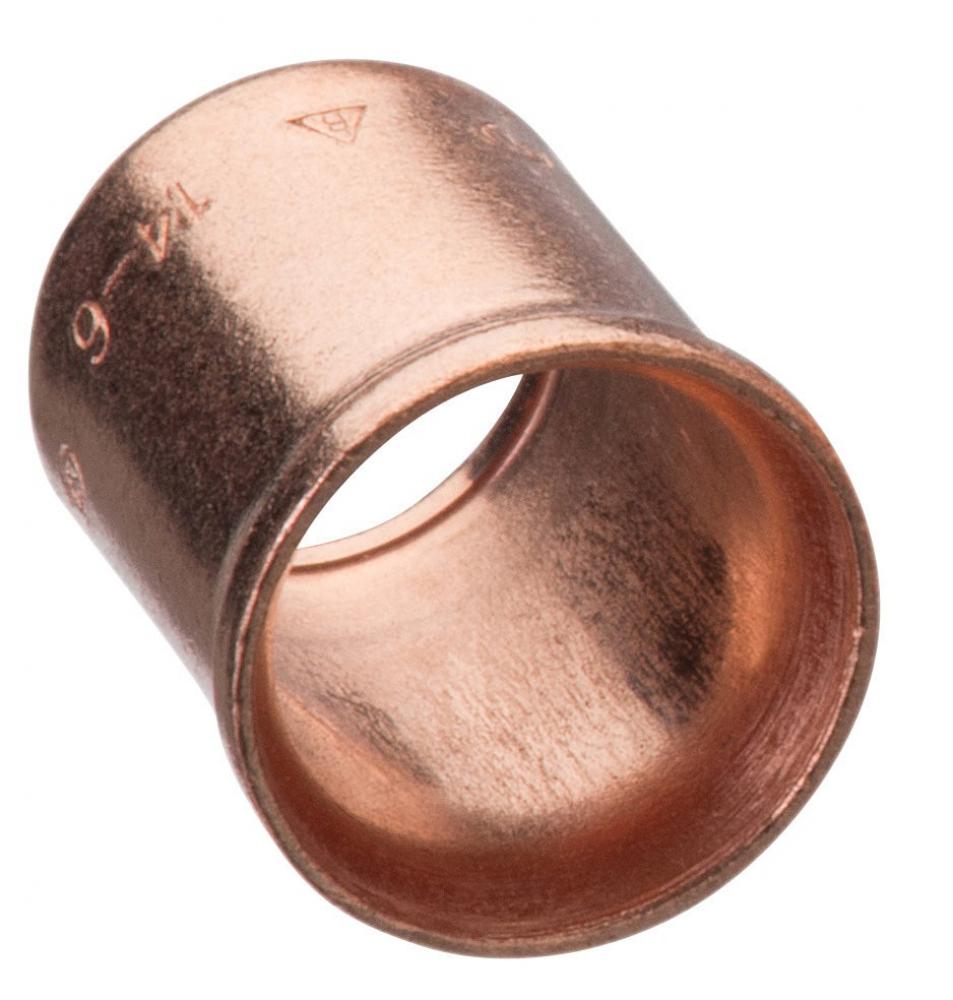

Buchanan, Crimp Connector, Splice Cap, Conductor Range: 18 - 10 AWG, 18/2 AWG Min, 12/4 AWG Max, Finish: Zinc-Plated, Tin-Plated Steel Sleeves, Material: Copper Sleeves, Voltage Rating: 600 V
Specifications
Details
Product Height:
1.00"
Product Width:
4.00"
Product Length:
5.00"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Application:
For Buchanan C24 Crimp Tool And Designed For Fast, Permanent, Pressure-Type Connections
Brand Name:
Buchanan
Brochure:
Compare Number:
100
Conductor Range:
18 - 10 AWG, 18/2 AWG Min, 12/4 AWG Max
Country Of Origin:
USA
Finish:
Zinc-Plated, Tin-Plated Steel Sleeves
Material:
Copper Sleeves
MsdsURL:
https://idw.ideaservices.net/files/11020/splice_cap_connectors_msds.pdf
Order Minimum:
1000.000 EA
Order Multiple:
1000.000 EA
RoHS Compliance:
Yes
Rohs Link:
Special Features:
Features: For #18 To #10 AWG Wire; Minimum 2 #18 AWG; Maximum 4 #12 AWG; Use Buchanan C24 Crimp Tool; Designed For Fast, Permanent, Pressure-Type Connections; UL Listed And CSA Certified; Zinc-Plated Or Copper Sleeves Resist Corrosion; Solid Copper Sleeves
Standard:
CSA, UL Listed, RoHS
Stock Type:
Shelf Stock
Type:
Splice Cap
UNSPSC:
39121449
Voltage Rating:
600
Weight:
.200 L
