SET-SCREW 11 CONN-CRT OF 1000

Ideal Industries
SET-SCREW 11 CONN-CRT OF 1000

Part Number: 30-311
UPC: 00783250303113
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview

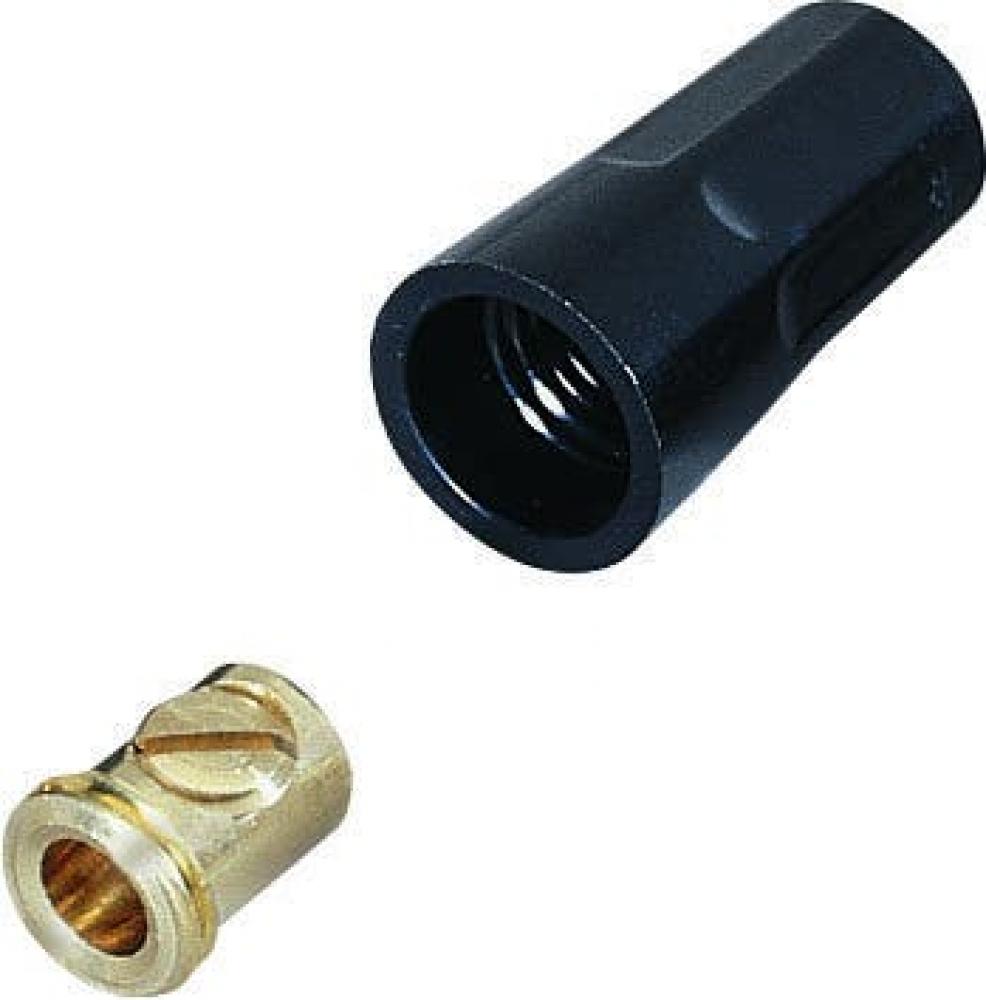

IDEAL, Wire Connector, Set-Screw, Size: 33/64 IN Width X 63/64 IN Height, Number Of Conductors: 1 to 6, Wire Size: 22 - 10 AWG, Material: Brass, Flame-retardant polypropylene shell, Color: Brass Connector, Black Shell, Voltage Rating: 600 V, Temperature Rating: 150 , 302 DEG C, DEG F, Dimension B: 3/8 IN, Model: 11, Width: 33/64 IN, Height: 63/64 IN, Dimension D: 13/32 IN
Specifications
Details
Product Height:
5.00"
Product Width:
7.50"
Product Length:
15.50"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Brand Name:
IDEAL
Brochure:
Manufacturer Brochure
Color:
Brass Connector, Black Shell
Compare Number:
1000
Country Of Origin:
USA
Material:
Brass, Flame-retardant polypropylene shell
Number Of Conductors:
1 to 6
Order Minimum:
1000.000 EA
Order Multiple:
1000.000 EA
RoHS Compliance:
Yes
Rohs Link:
Material Composition Declaration Link
Size:
33/64 IN Width X 63/64 IN Height
Special Features:
Features: Eliminates Need For Restripping Wire Each Time Connection Is Disturbed; Solid Brass Sleeves ;Set-Screw Easily And Securely Applies Maximum Compression To Conductors To Ensure A Vibration-Resistant Splice; Permits Fast Visual Inspection Of Splice;
Standard:
CSA C22.2, 486C UL Listed
Stock Type:
Shelf Stock
Temperature Rating:
150 , 302
Type:
Set-Screw
UNSPSC:
39121409
Voltage Rating:
600
Weight:
10.900 L
Wire Size:
22 - 10
