Image may not reflect selected features
No Image
Available
Available
Ideal Industries

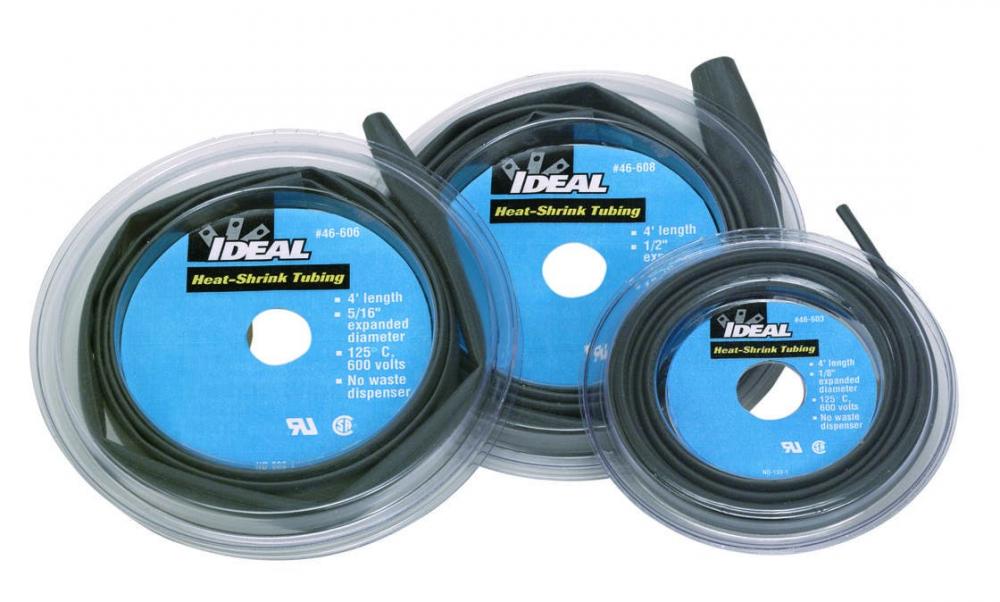

HEAT SHRINKABLE TUBING
Part Number: 46-603
UPC: 00783250466030
Call for Price
- Manufacturer availability unknown.
Quantity:
Product Overview
IDEAL, Heat Shrinkable Tube, Thermo-Shrink, Thin-Wall, Shrink Ratio: 2:1, Inside Diameter: 1/8 IN, Thickness: 017 IN, Length: 4 FT, Dielectric Strength: ASTM D 150, 20 KV/MM, Volume Resistivity: 1014 OHM CM For ASTM D 876 Test Method, Continuous Operating Temperature: -55 To 125 DEG C, Minimum Shrink Temperature: 70 DEG C, Heat Shock: UL 224, No Cracking (250 DEG C/4 HR), Cable Range: 24 - 20 AWG, Nominal Recoveredi.d. (max.): 063 IN, Expanded I.d. (min.): 0.146, Elongation At Break: 600 PCT ASTM D 638, Elongation Of Break After Aging: 350 PCT For UL 224 Test Method, Cold Bend Test (-55°c/4 Hours): No Cracking For UL 224 Test Method, Copper Corrosion: Pass For UL 224 Test Method, Chemical Resistance: Pass For UL 224 Test Method, Longitudinal Shrinkage: 0 Plus Or Minus 5 PCT For UL 224 Test Method, Eccentricity: 30 PCT For UL 224 Test Method, Normal Size: 1/8 IN, Package: Disk
Specifications
Details
Product Height:
0.50"
Product Width:
4.00"
Product Length:
5.25"
Electrical Category:
Fittings and Hardware
Electrical Subcategory:
Electrical Hardware And Supplies
Brand Name:
IDEAL
Continuous Operating Temperature:
-55 To 125
Country Of Origin:
CHN
Dielectric Strength:
ASTM D 150, 20 KV/MM
Heat Shock:
UL 224, No Cracking (250 DEG C/4 HR)
Inside Diameter:
1/8
Length:
4
Minimum Shrink Temperature:
70
Order Minimum:
5.000 EA
Order Multiple:
5.000 EA
RoHS Compliance:
Yes
Rohs Link:
Shrink Ratio:
2:1
Special Features:
Features: Polyolefin material electrically insulates and protects in-line components, disconnect terminals and splices with its high strength and excellent resilience; Use to bundle wires for very flexible light-duty harnesses; Highly flame-retardant and f
Standard:
C/US RU Listed,RoHS
Stock Type:
Shelf Stock
Sub Brand:
Thermo-Shrink®
Thickness:
017
Type:
Thin-Wall
UNSPSC:
39121723
Volume Resistivity:
1014 OHM CM For ASTM D 876 Test Method
Weight:
.100 L
