Image may not reflect selected features
No Image
Available
Available
Ideal Industries

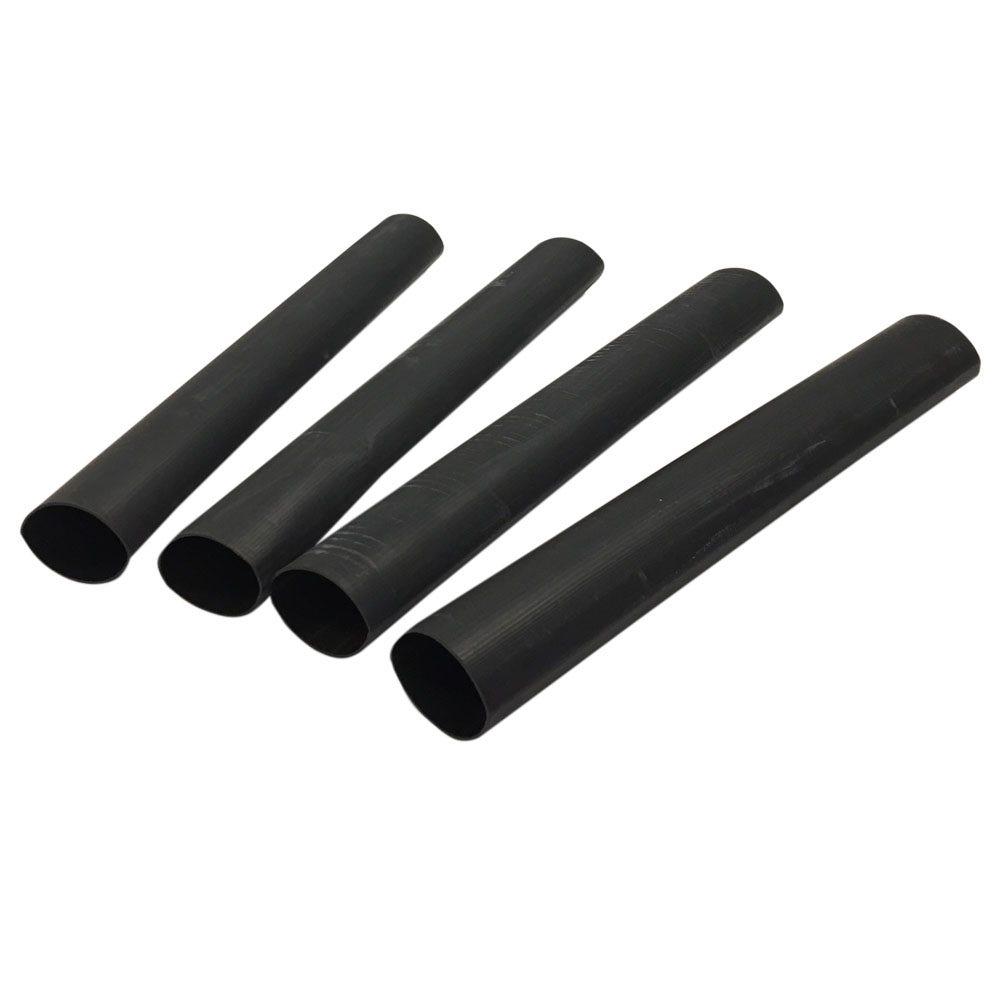

Heat Shrinkable Tube,Ideal,Thermo-Shrink,Heavy-W
Part Number: 46-371
UPC: 00783250463718
Call for Price
- Manufacturer availability unknown.
Quantity:
Product Overview
IDEAL, Heat Shrinkable Tube, Thermo-Shrink, Heavy-Wall Heat Shrink Tubing, Shrink Ratio: 3:1, Thickness: 0.160 IN, Length: 18 IN, Volume Resistivity: 1013 OHM -CM MIN, Dielectric Strength: 500 V/MIL (20 KV MINT), Continuous Operating Temperature: -55 To 110 DEG C, Minimum Shrink Temperature: 120 - 250 DEG C (200 DEG C Recommended), Low Temperature Flexibility: -55 DEG C, Heat Shock: No Cracks, Flowing Or Dripping (4 HR At 225 DEG C), Water Absorption: 0.5 PCT, Heat Aging: 500 PCT (168 HR At 175 DEG C Tensile Strength Elongation), Cable Range: 250 - 500 MCM, Nominal Recoveredi.d. (max.): 0.630 IN, Expanded I.d. (min.): 2, Copper Corrosion: Non-Corrosive, Ultimate Elongation: 600 PCT Min., Model: TS-46-2000
Specifications
Details
Product Height:
4.50"
Product Width:
4.50"
Product Length:
24.00"
Electrical Category:
Fittings and Hardware
Electrical Subcategory:
Electrical Hardware And Supplies
Brand Name:
IDEAL
Compare Number:
100
Continuous Operating Temperature:
-55 To 110
Country Of Origin:
USA
Dielectric Strength:
500 V/MIL (20 KV MINT)
Heat Aging:
500 PCT (168 HR At 175 DEG C Tensile Strength Elongation)
Heat Shock:
No Cracks, Flowing Or Dripping (4 HR At 225 DEG C)
Length:
18
Low Temperature Flexibility:
-55
Minimum Shrink Temperature:
120 - 250 DEG C (200 DEG C Recommended)
Order Minimum:
4.000 EA
Order Multiple:
4.000 EA
RoHS Compliance:
Yes
Rohs Link:
Shrink Ratio:
3:1
Special Features:
Features: TS-46 irradiated cross-linked polyolefin with 3:1 standard shrink ratio; Adhesive liner provides complete insulation and protection to electrical splices in above-grade, underground or underwater applications; Maximum flame retardancy; Meets UL 4
Standard:
CSA, UL Listed,RoHS
Stock Type:
Shelf Stock
Sub Brand:
Thermo-Shrink®
Thickness:
0.160
Type:
Heavy-Wall Heat Shrink Tubing
UNSPSC:
39121723
Volume Resistivity:
1013 OHM -CM MIN
Water Absorption:
0.5
Weight:
.920 L
