Fluke

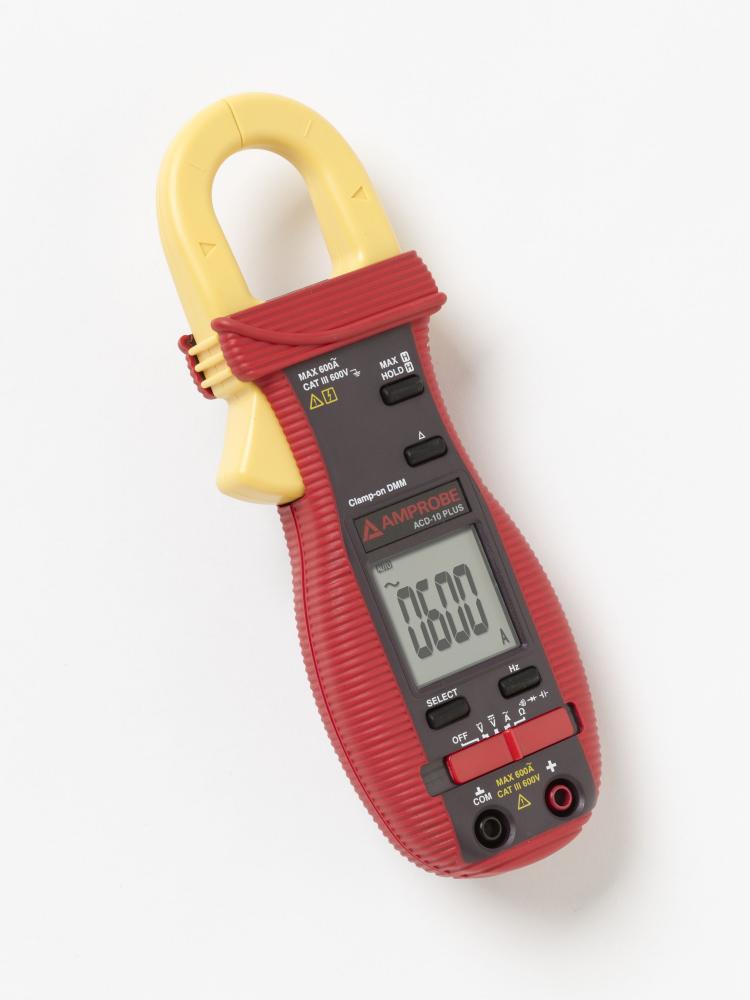

DIGITAL CLAMP ON METER, CAP, FREQ
Part Number: ACD-10-PLUS
UPC: 00095969417457
Call for Price
- Manufacturer may be Out Of Stock.
Quantity:
Product Overview
This Amprobe clamp meter offers thinner jaws over standard clamp meters. Clamp meter takes AC/DC measurements and offers Capacitance and Frequency. It also offers thinner jaws over standard clamp meters allowing access to tight areas and still accommodates conductors up to 1.02''( 26mm).
Specifications
Details
Product Height:
10.63"
Product Width:
2.95"
Product Length:
7.01"
Electrical Category:
Testing And Measuring
Electrical Subcategory:
General Testing And Measuring
Accuracy:
DC voltage: 400.0 mV ±(0.3% + 4 digits); 4.000, 40.00, 400.0 V ±(0.5% + 3 digits); 600 V ±(1.0% + 4 digits); AC voltage: 4.000, 40.00, 400.0 V ±(1.5% + 5 digits); 600 V ±(2.0% + 5 digits); AC current: 40.00, 400.0, 600 A ±(1.5% + 8 digits)
Amperage Rating:
AC Current: 40.00 A, 400.0 A, 600 A; DC current:
Application:
AC/DC measurement with true-rms accuracy and offers capacitance and frequency
Battery:
3V coin battery IEC-CR2032
Brand Name:
Amprobe
Capacitance:
500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF, 3000 µF
Country Of Origin:
TW
Dimensions:
7.4 x 2.5 x 1.3
Diode Test:
Yes
Display:
3-3/4 digits 4000 counts LCD display
Enclosure:
Hard plastic
Frequency Rating:
40 Hz ? 400 Hz with Jaw, 10 Hz ? 100 kHz with test leads
Model:
ACD-10 TRMS-PLUS
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Peak Hold:
No
Resistance:
400.0 O, 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO, 40.00 MO
RoHS Compliance:
Yes
Spec Sheet:
Standard:
EN61010-2-032, UL61010B-2-032, IEC61010-1 2nd Ed., EN61010-1 2nd Ed., UL61010-1 2nd Ed. CAT III-600 Volts ac & dc; Pollution degree : 2; EMC: Conforms to EN61326-1
Tech Drawing Link:
Type:
Digital Multimeter
UNSPSC:
41113630
Voltage Rating:
DC Voltage 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V; AC Voltage 4.000 V, 40.00 V, 400.0 V, 600 V
Weight:
1.010 L
