LD 3P 500A W/ A1X4RTK & SNT4LP18K

Eaton
LD 3P 500A W/ A1X4RTK & SNT4LP18K

Part Number: LD3500A08S18
UPC: 00782114740255
Call for Price
  • Manufacturer may be Out Of Stock.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview

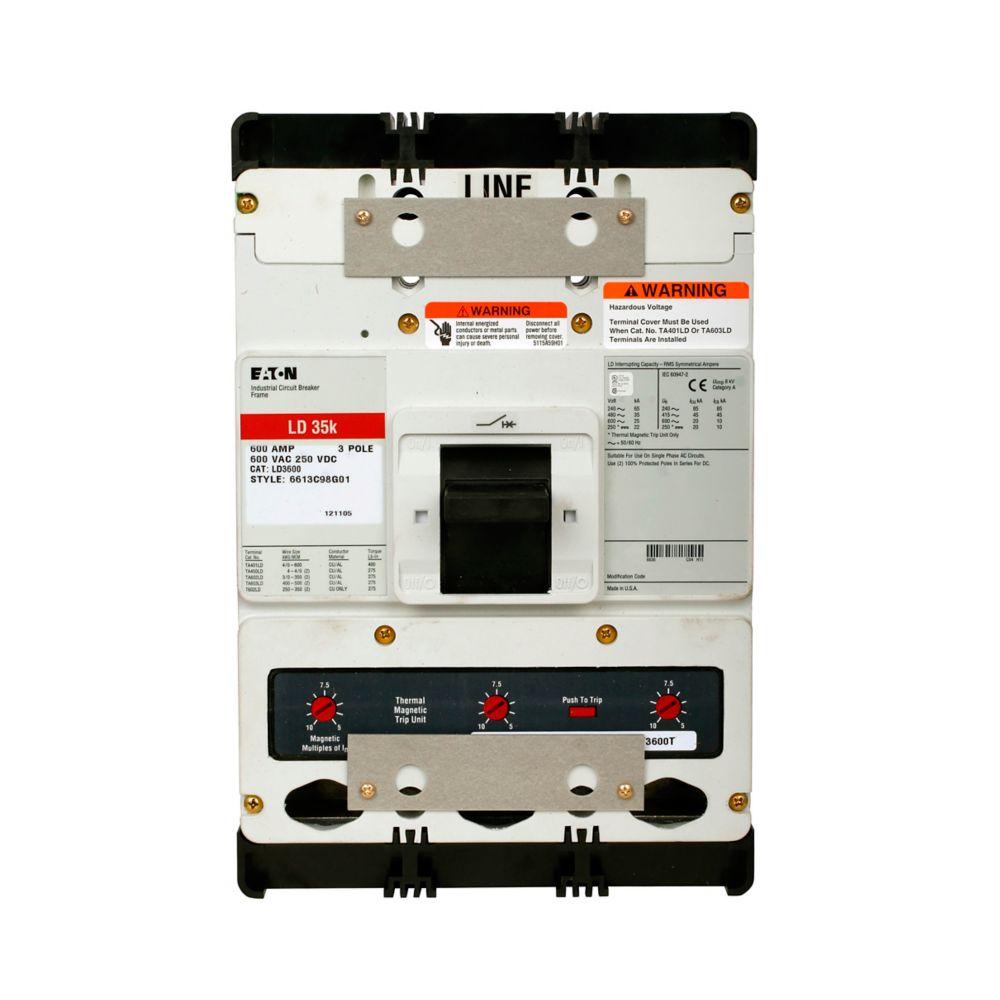

Eaton Series C complete molded case circuit breaker, L-frame, LD, Fixed thermal and magnetic trips, Three-pole, 500A, 600 Vac, 250 Vdc, 65 kAIC at 240 Vac, 35 kAIC at 480 Vac, 1A-1B same side right term., 80-600 Vac rear w/ left pigtail
Specifications
Details
Product Height:
8.25"
Product Width:
8.25"
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
Breakers
Electrical Subtype:
Molded Case Circuit Breaker
Application:
Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Brand Name:
Eaton
Brochure:
Manufacturer Brochure
Country Of Origin:
US
Current Rating:
500 A
Frame:
L
Frequency Rating:
50 to 60 Hz
Interrupt Rating:
65 kAIC at 240 Vac|35 kAIC at 480 Vac
Length:
10.7500 IN
Number Of Poles:
Three-pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Spec Link
Standard:
UL 489
Trip Type:
Fixed thermal, fixed magnetic
Type:
Molded case circuit breaker
UNSPSC:
39121616
Video Clip:
Product Video Clip
Voltage Rating:
600 Vac, 250 Vdc
Weight:
.010 L
