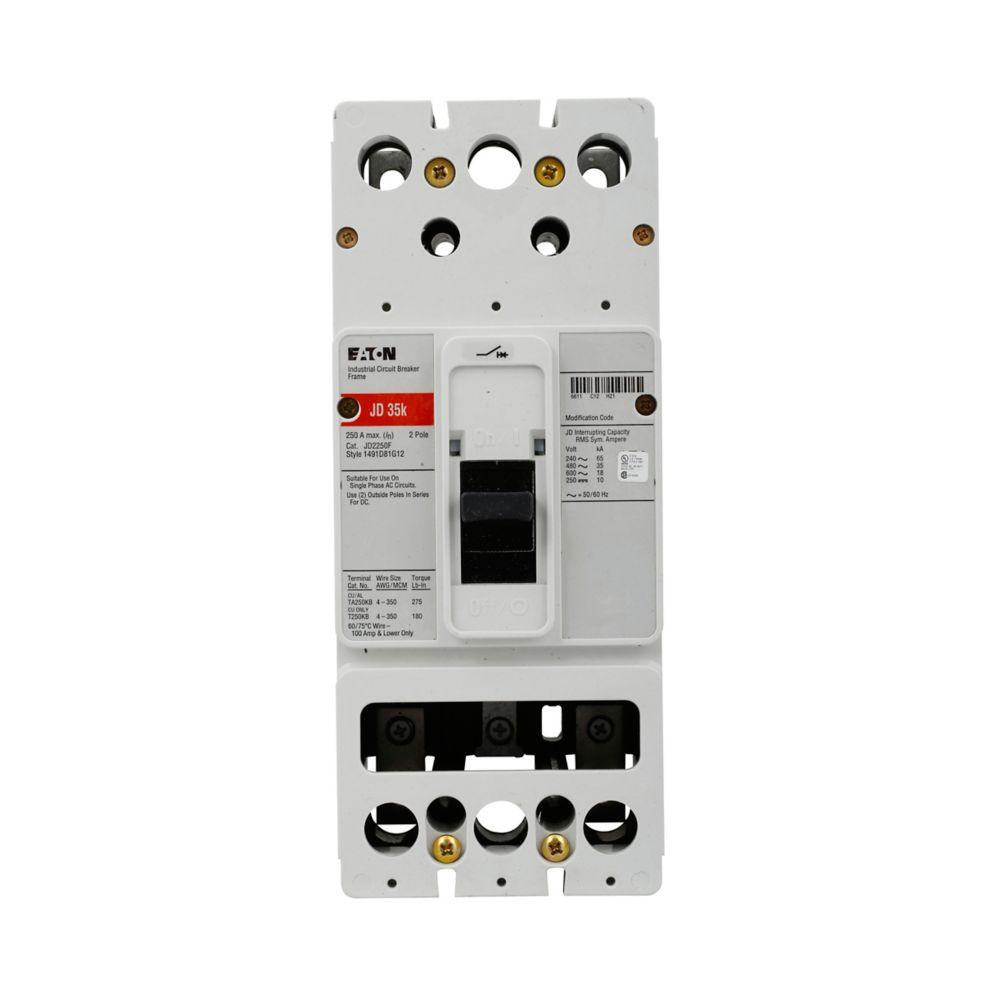

JD 2P 250A LN/LD END CAPS W/ST 12-24VAC

Eaton
JD 2P 250A LN/LD END CAPS W/ST 12-24VAC

Part Number: JD2250A02D11S45
UPC: 00782113922553
Call for Price
  • Manufacturer may be Out Of Stock.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Eaton Series C complete molded case circuit breaker, J-frame, JD, Fixed thermal and magnetic trips, Two-pole, 250A, 600 Vac, 250 Vdc, 65 kAIC at 240 Vac, 35 kAIC at 480 Vac, 1A-1B rear w/left pigtail, 12-24 Vac/dc same side w/ right pigtail
Specifications
Details
Product Height:
4.13"
Product Width:
4.06"
Product Length:
10.00"
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
Breakers
Electrical Subtype:
Molded Case Circuit Breaker
Application:
Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Brand Name:
Eaton
Brochure:
Manufacturer Brochure
Country Of Origin:
DO
Current Rating:
250 A
Frame:
J
Frequency Rating:
50 to 60 Hz
Interrupt Rating:
65 kAIC at 240 Vac|35 kAIC at 480 Vac
Number Of Poles:
Two-pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Spec Link
Standard:
UL Listed
Trip Type:
Fixed thermal, fixed magnetic
Type:
Molded case circuit breaker
UNSPSC:
39121616
Video Clip:
Product Video Clip
Voltage Rating:
600 Vac, 250 Vdc
Weight:
.010 L
