IPROX INDUCTIVE,18MM,DC,UN,NO M12

Eaton
IPROX INDUCTIVE,18MM,DC,UN,NO M12

Part Number: E59-M18C116D01P-D1
UPC: 00782116183470
Call for Price
  • Manufacturer may be Out Of Stock.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview

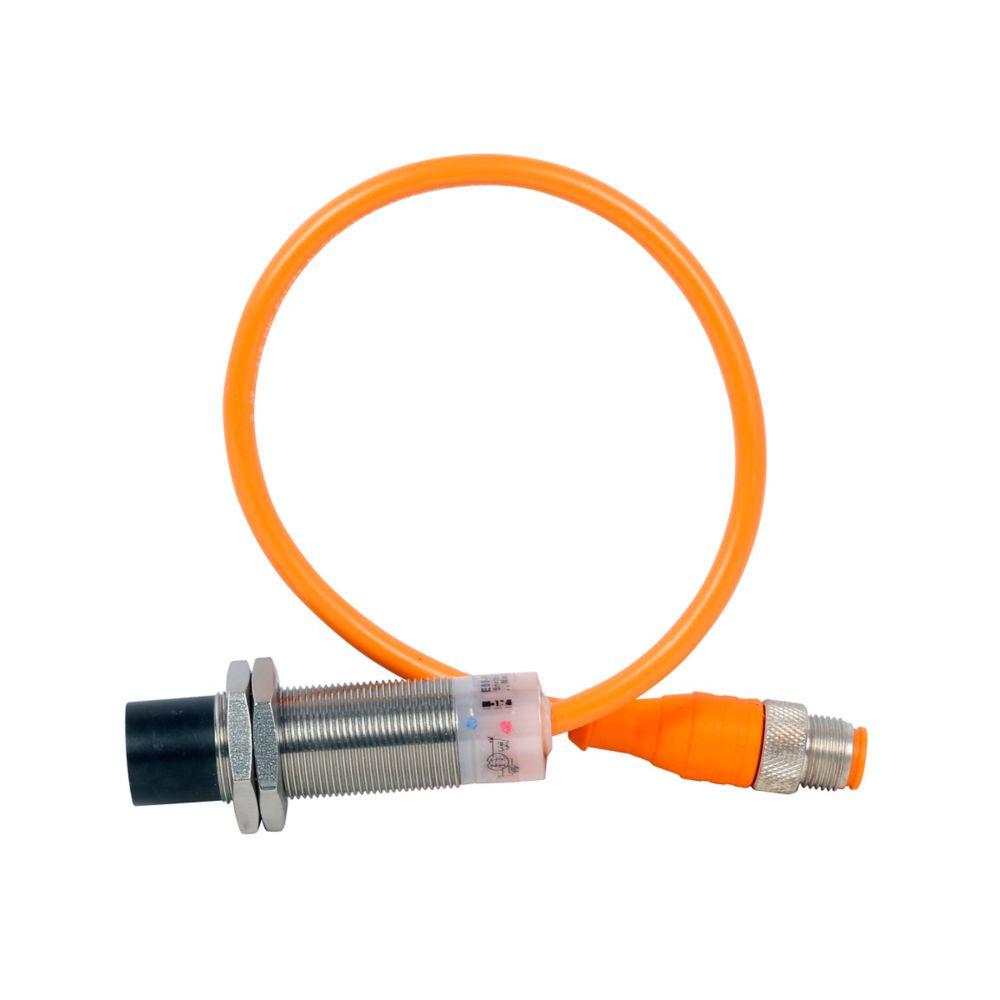

Eaton Inductive Proximity Sensor, E59, Straight, Unshielded, 360° viewable LED, M12 (pigtail), 300 mA at 6-48 Vdc, 4 pin, <3% sensing range, NPN/PNP auto configure, NO, 6-48 Vdc
Specifications
Details
Product Height:
1.75"
Product Width:
5.00"
Electrical Category:
Testing And Measuring
Electrical Subcategory:
Sensors
Accuracy:
< 3% sensing range
Application:
Stationary Mach Equip In Factory - Other Stationary Machinery and Equipment - In Factory
Brand Name:
Eaton
Brochure:
Manufacturer Brochure
Connection:
M12 (pigtail)
Country Of Origin:
MX
Environmental Conditions:
NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
Length:
6.0000 IN
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Spec Link
Standard:
UL Listed,CSA Certified,CE Marked
Temperature Rating:
-40 to 158 °F
Type:
Programmable inductive proximity sensor
UNSPSC:
41111926
Video Clip:
Product Video Clip
Weight:
.500 L
