IPROX INDUCTIVE,12MM,DC,UN,NC M12

Eaton

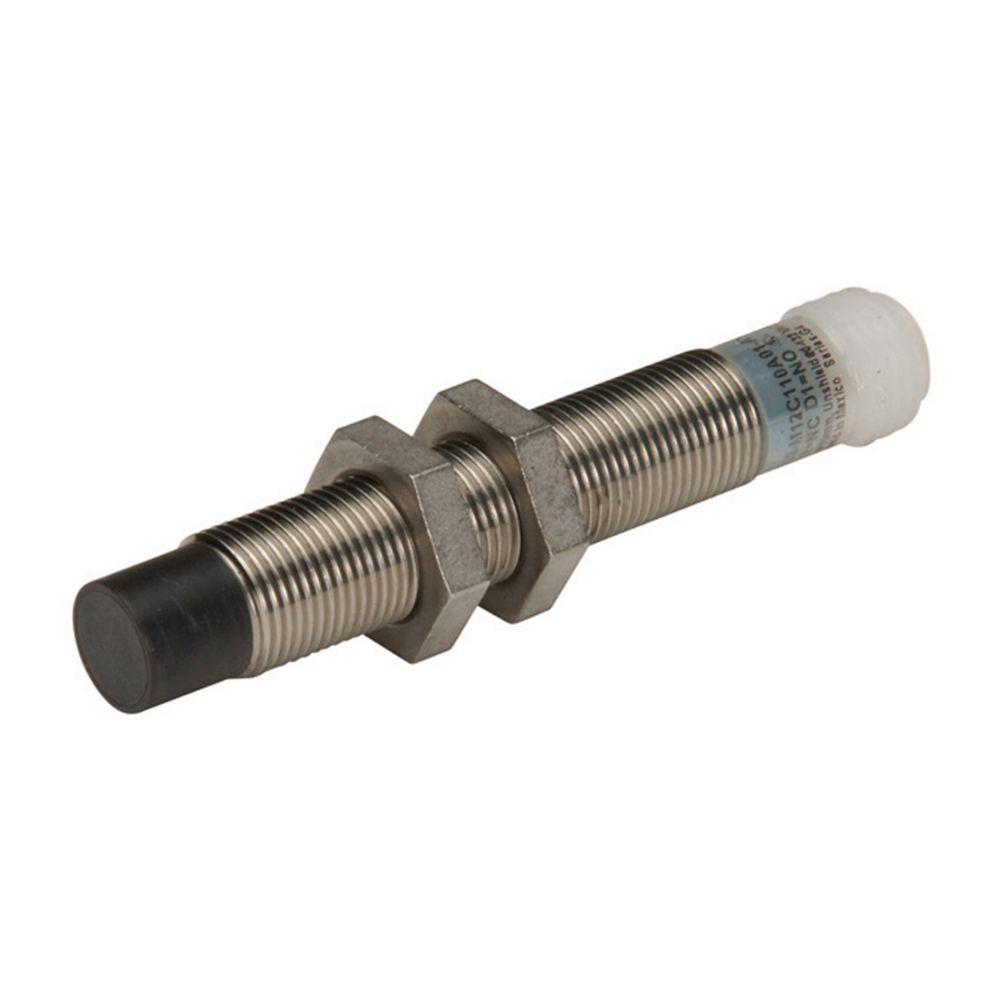

IPROX INDUCTIVE,12MM,DC,UN,NC M12

Part Number: E59-M12C110D01P-D2
UPC: 00782116183302
Call for Price
  • Manufacturer may be Out Of Stock.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Eaton Iprox Series Tubular Inductive Proximity Sensor Enclosure, 0.47 dia, Sensor dist 10 mm, NPN/PNP Auto Configure, NC, 500 mA at 6-30 Vdc, 300 mA at 32-48 Vdc, 4 Pin M12 Pigtail Connector, 6-48 Vdc input, <3% of sensing dist. accuracy
Specifications
Details
Product Height:
1.75"
Product Width:
5.00"
Product Length:
6.00"
Electrical Category:
Testing And Measuring
Electrical Subcategory:
Sensors
Electrical Subtype:
Proximity Sensors
Accuracy:
< 3% of sensing distance
Application:
Stationary Mach Equip In Factory - Other Stationary Machinery and Equipment - In Factory
Brand Name:
Eaton
Brochure:
Manufacturer Brochure
Connection:
4-pin M12 pigtail connector
Country Of Origin:
MX
Environmental Conditions:
NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Spec Link
Standard:
CSA Certified,UL Listed,CE Marked
Type:
Programmable inductive proximity sensor
UNSPSC:
41111926
Video Clip:
Product Video Clip
Weight:
.075 L
