Eaton

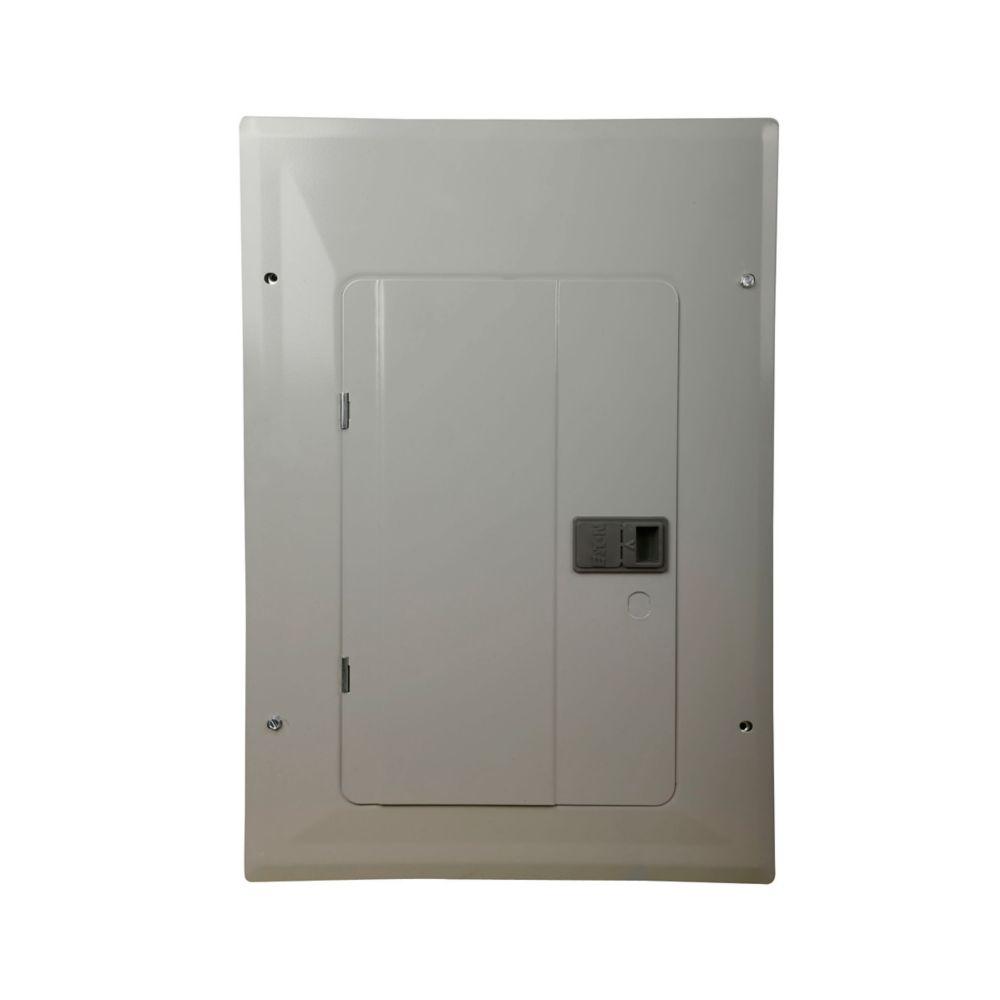

3 Ph/BR LC 100A MCB 12/24 CKT Al Bus
Part Number: 3BR1224B100
UPC: 00786676440103
Call for Price
- Manufacturer availability unknown.
Quantity:
Product Overview
Eaton BR main breaker loadcenter,No feed-thru lugs,Main circuit breaker,100 A,C1,Aluminum,Cover included,NEMA 1,Galvanized steel,10 kAIC,BR,24 Circuits,12 Spaces,Four-wire,Three-phase,#4-1/0 AWG Cu/Al,Combination,208 Y/120, 240 V
Specifications
Details
Product Height:
4.50"
Product Width:
15.80"
Product Length:
23.10"
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
General Power Distribution
Electrical Subtype:
Load Centers And Panelboards And Accessories
Amperage Rating:
100 A
Application:
Other|Generation - Renewable Energy - Alternative Energy|Generation - Conventional Energy - Conventional Energy|Datacenters - IT Space: CI and Hyper Converged|Marine Vessels and Equipment - Marine Vessels and Equipment - Other
Brand Name:
Eaton
Brochure:
Country Of Origin:
US
Cover Type:
Cover included
Interrupt Rating:
10 kAIC
Mounting:
Combination
Number Of Spaces:
12
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Three-phase
RoHS Compliance:
Contact Manufacturer
Size:
C1
Spec Sheet:
Special Features:
No feed-thru lugs
Standard:
UL 67,UL 50
Stock Type:
Shelf Stock
Tech Bulletin Link:
Type:
Main breaker loadcenter
UNSPSC:
39121101
Voltage Rating:
208Y/120, 240V
Weight:
23.000 L
