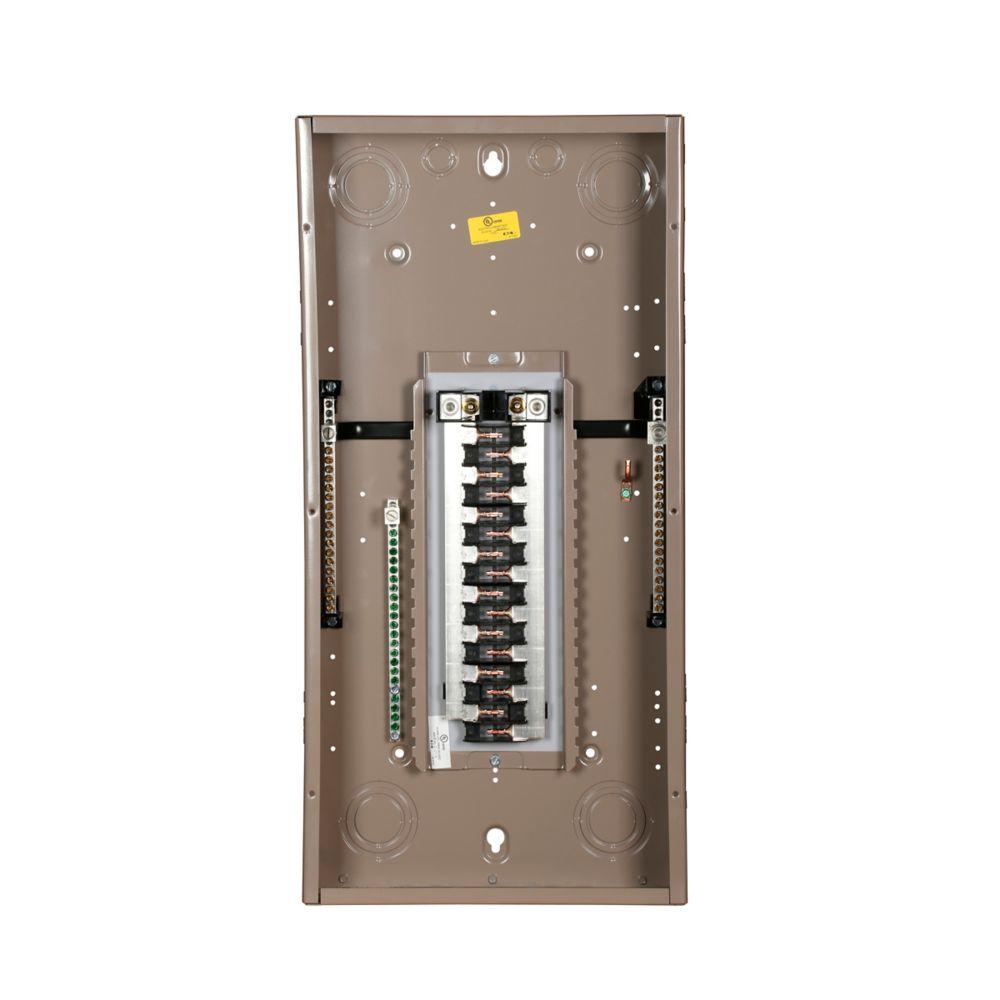

1Ph/CH LC 150A MLO 32 Cir. Cu Bus N1

Eaton
1Ph/CH LC 150A MLO 32 Cir. Cu Bus N1

Part Number: CH32L150D
UPC: 00782113098029
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
CH 3/4-inch loadcenter,Standard,Main lug only,150A,D,Copper,Ch8df-combination, ch8ds-surface,NEMA 1,Metallic,Top/bottom,CH,32,32,Three-wire,Single-phase,#4 AWG-300 kcmil
Specifications
Details
Product Height:
3.88"
Product Width:
14.31"
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
General Power Distribution
Amperage Rating:
150 A
Application:
Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Brand Name:
Eaton
Brochure:
Manufacturer Brochure
Country Of Origin:
US
Cover Type:
Ch8df-combination, ch8ds-surface
Installation Link:
Installation Instructions
Interrupt Rating:
25 kAIC
Lead Time:
5.000 DW
Length:
29.1300 IN
Number Of Spaces:
32
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single-phase
RoHS Compliance:
Contact Manufacturer
Size:
D
Spec Sheet:
Spec Link
Special Features:
Standard
Standard:
UL 50,UL 67
Stock Type:
Shelf Stock
Type:
Main lug loadcenter
UNSPSC:
39121101
Video Clip:
Product Video Clip
Weight:
15.000 L
