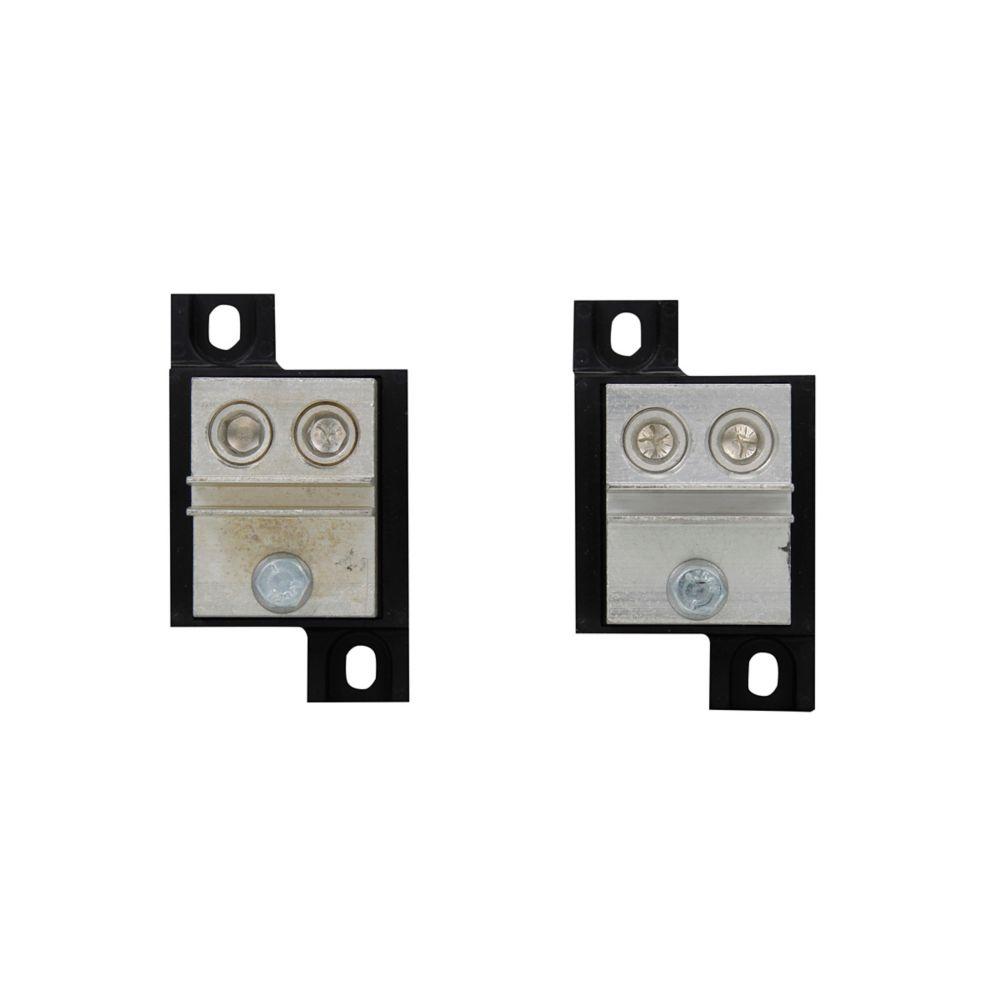

BUSS FUSEBLOCK

Eaton Bussmann
BUSS FUSEBLOCK

Part Number: 1BS102
UPC: 00051712134996
Call for Price
  • Manufacturer may be Out Of Stock.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Eaton Universal fuse block, Modular, 400 A, 150, Celsius, 150, Celsius, Screw, 200 kAIC, Molded black phenolic base, Tin-plated aluminum connector, Zinc-plated steel studs/nut/washer, Stud, 600 V, Used with Type SC fuses, #6-250 kcmil Cu/Al
Specifications
Details
Product Height:
2.50"
Product Width:
3.20"
Product Length:
6.60"
Electrical Category:
Fuses Relays And Circuit Breakers
Electrical Subcategory:
Fuses
Amperage Rating:
400 A
Application:
Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Brand Name:
Eaton
Connection:
Screw
Country Of Origin:
MX
Lead Time:
14.000 DA
Material:
Tin-plated aluminum connector|Zinc-plated steel studs/nut/washer|Molded black phenolic base
Mounting:
Stud
Operating Temperature:
150 Deg C
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
2.25 In Width X 2.53 In Height
Spec Sheet:
Spec Link
Special Features:
Wire Size 6 AWG To 250 MCM (Copper/Aluminum), Interrupt Rating 200 kA (RMS Symmetrical), Torque 275 Lbs-In Conductor Set Screw, 120 Lb-In Fuse Mount
Standard:
Contact factory,RoHS Compliant
Sub Brand:
Bussmann Series
Tech Bulletin Link:
Technical Bulletin
Type:
Accessory
UNSPSC:
39121624
Voltage Rating:
600 V
Wattage:
150
Weight:
.975 L
