HYLUG-BELLED-500FLX-NEMA

Burndy-US, a Hubbell affiliate
HYLUG-BELLED-500FLX-NEMA

Part Number: YA382NFXB
UPC: 00781810039939
Call for Price
  • Manufacturer may be Out Of Stock.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview

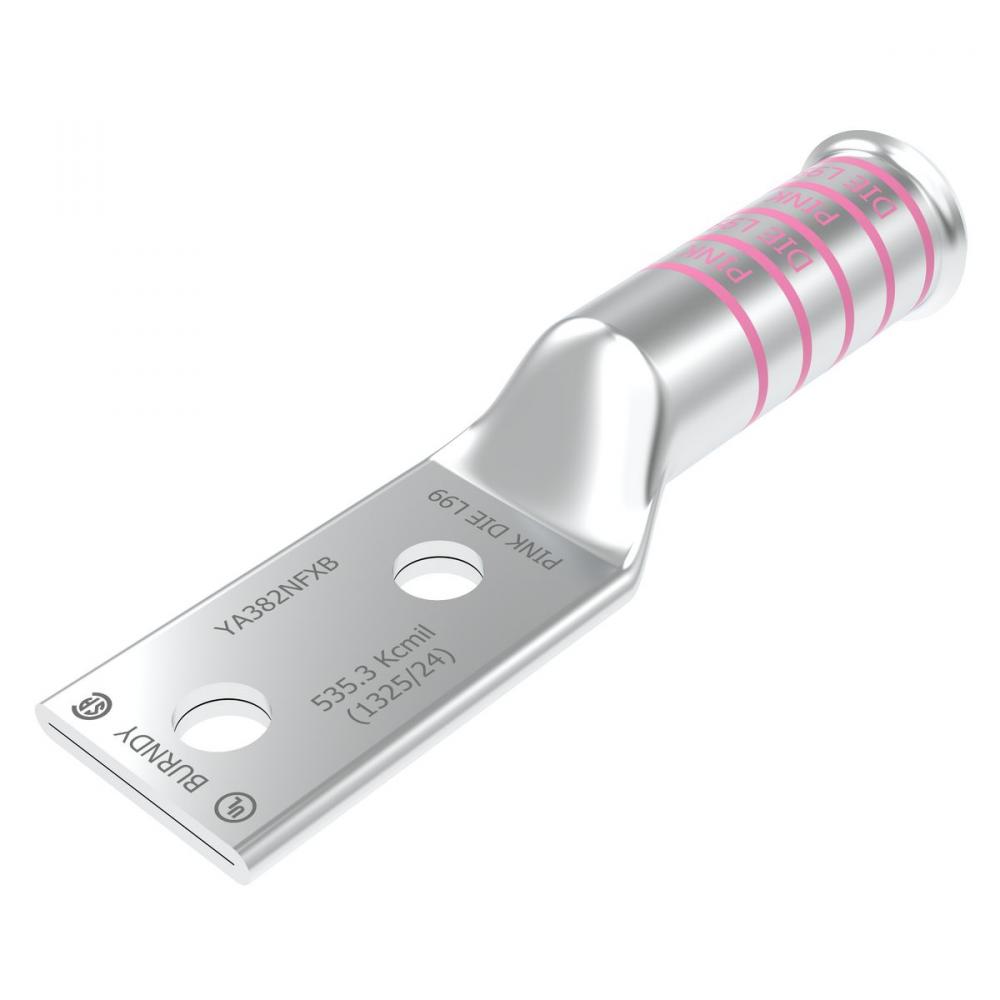

500 kcmil H,I,K / 550 kcmil G,H,I,535 DLO CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Long Barrel, Bell End, Tin Plated, UL/CSA, 90?C, Up to 35kV, Pink Color Code, L99 Die Index.
Specifications
Details
Product Height:
1.25"
Product Width:
1.84"
Product Length:
7.01"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Lugs
Application:
Wire Termination
Brand Name:
BURNDY
Brochure:
Manufacturer Brochure
Color Code:
Pink
Country Of Origin:
US
Installation Link:
Installation Instructions
Lead Time:
10.000 WK
Line Drawing Link:
Line Drawing
Material:
Copper
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Spec Sheet:
Spec Link
Special Features:
Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Wire Strip Length: 3-3/16 IN, Die Index: L99, Tongue Angle: Straight, Tools, Die Set Catalog Number, And (number
Standard:
UL 486A-486B
Sub Brand:
HYLUG
Tech Drawing Link:
Tech Drawing
Type:
Long Barrel, Tin Plated
UNSPSC:
39121405
Voltage Rating:
35
Weight:
1.070 L
