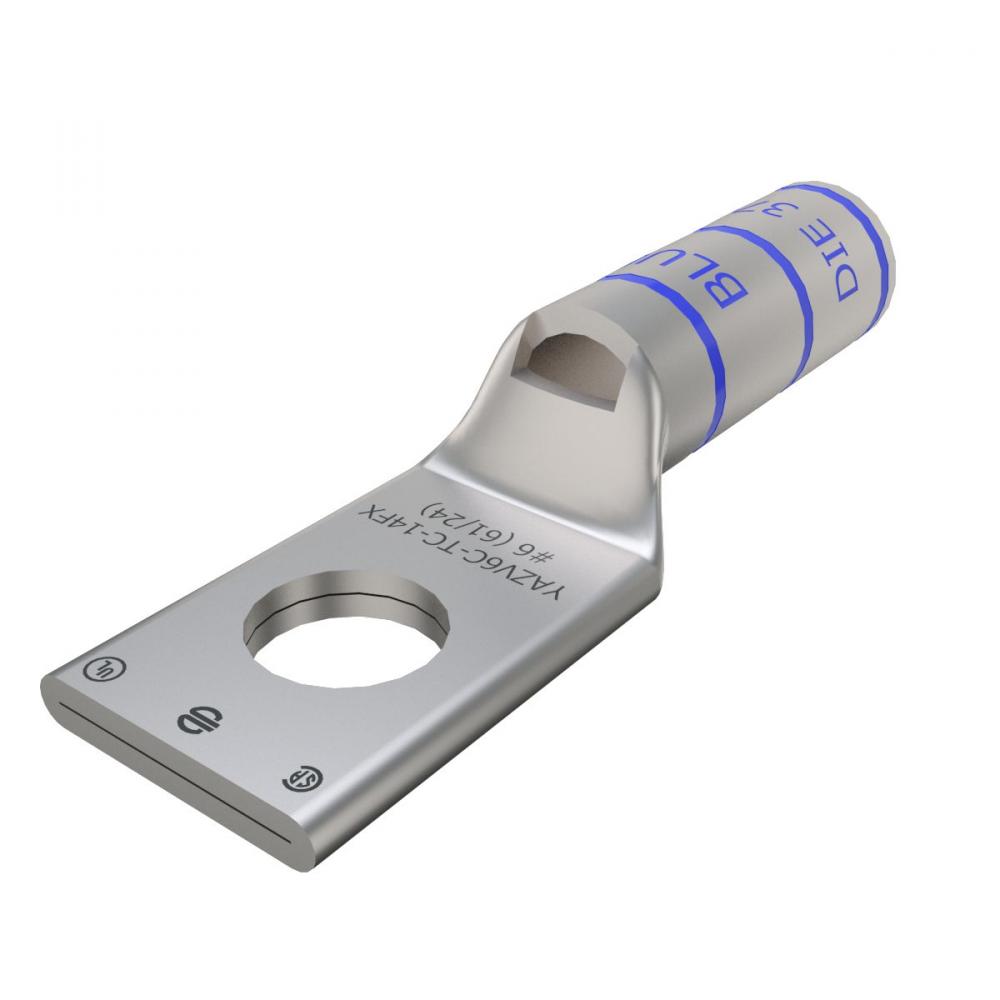

CULUG- 6FLEX-LONG W/PORT-1/4" STUD

Burndy-US, a Hubbell affiliate
CULUG- 6FLEX-LONG W/PORT-1/4" STUD

Part Number: YAZV6CTC14FX
UPC: 00781810241134
Call for Price
  • Manufacturer may be Out Of Stock.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
6 Flex G,H,I,K,M,DLO, 6 AWG CU, One Hole, 1/4 Stud Size, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90?C, Up to 35kV, Blue Color Code, 7 or 374 Die Index.
Specifications
Details
Product Height:
0.31"
Product Width:
0.48"
Product Length:
1.59"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Lugs
Application:
Wire Termination
Brand Name:
BURNDY
Brochure:
Manufacturer Brochure
Color Code:
Blue
Country Of Origin:
US
Installation Link:
Installation Instructions
Lead Time:
10.000 WK
Line Drawing Link:
Line Drawing
Material:
Copper
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Spec Sheet:
Spec Link
Special Features:
Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Wire Strip Length: 1-3/16 IN, Die Index: 7, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Color Code: Blue, Too
Standard:
UL 486A-486B
Sub Brand:
HYLUG
Tech Drawing Link:
Tech Drawing
Type:
Long Barrel, Skive
UNSPSC:
39121405
Voltage Rating:
35
Weight:
.024 L
