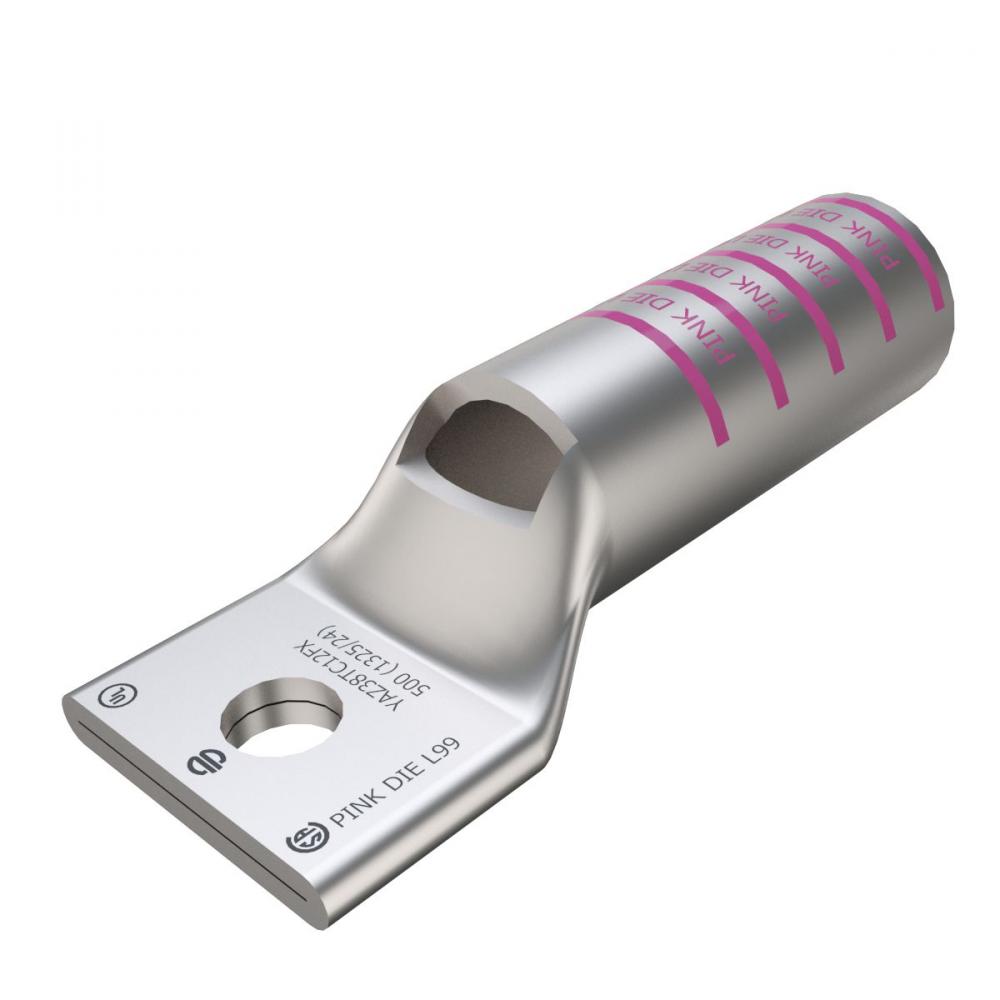

CULUG-500FLX-LONG W/PORT-1/2" STUD

Burndy-US, a Hubbell affiliate
CULUG-500FLX-LONG W/PORT-1/2" STUD

Part Number: YAZ38TC12FX
UPC: 00781810242063
Call for Price
  • Manufacturer may be Out Of Stock.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
500 kcmil H,I,K / 550 kcmil G,H,I,535 DLO CU, One Hole, 1/2 Stud Size, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90?C, Up to 35kV, Pink Color Code, L99 Die Index.
Specifications
Details
Product Height:
1.25"
Product Width:
1.84"
Product Length:
4.77"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Lugs
Application:
Wire Termination
Brand Name:
BURNDY
Brochure:
Manufacturer Brochure
Color Code:
Pink
Country Of Origin:
US
Installation Link:
Installation Instructions
Lead Time:
11.000 WK
Line Drawing Link:
Line Drawing
Material:
Copper
Order Minimum:
15.000 EA
Order Multiple:
15.000 EA
Spec Sheet:
Spec Link
Special Features:
UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Wire Strip Length: 2-7/8 IN, Die Index: L99, Color Code: Pink, Tools, Die S
Standard:
UL 486A-486B
Sub Brand:
HYLUG
Tech Drawing Link:
Tech Drawing
Type:
Long Barrel, Skive
UNSPSC:
39121405
Voltage Rating:
35
Weight:
.710 L
