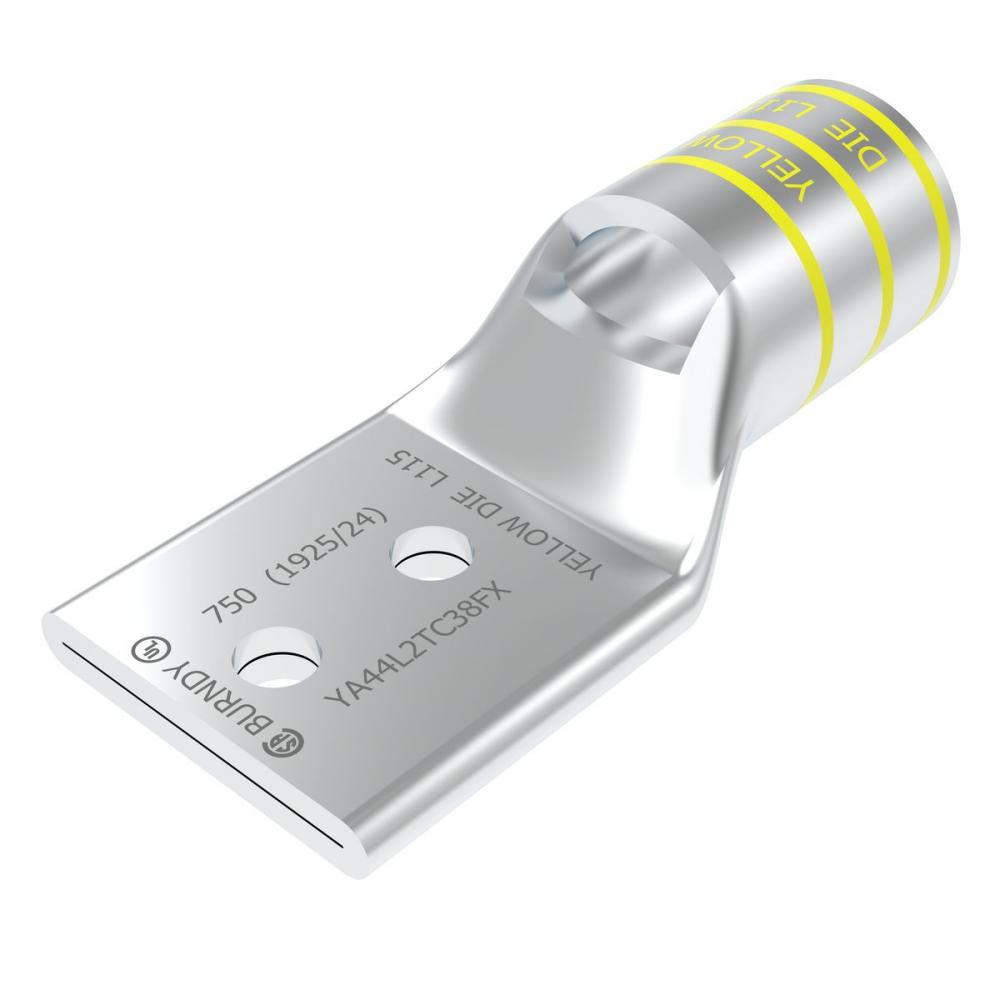

CU COMP.TERM-750 MCM FLE

Burndy-US, a Hubbell affiliate
CU COMP.TERM-750 MCM FLE

Part Number: YA44L2TC38FX
UPC: 00781810020999
Call for Price
  • Manufacturer may be Out Of Stock.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
750 kcmil G,H,777 DLO CU, Two Hole, 3/8 Stud Size, 1 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90?C, Up to 35kV, Yellow Color Code, L115 Die Index.
Specifications
Details
Product Height:
1.50"
Product Width:
2.19"
Product Length:
4.74"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Lugs
Application:
Wire Termination
Brand Name:
BURNDY
Brochure:
Manufacturer Brochure
Color Code:
Yellow
Country Of Origin:
US
Installation Link:
Installation Instructions
Lead Time:
11.000 WK
Line Drawing Link:
Line Drawing
Material:
Copper
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Spec Sheet:
Spec Link
Special Features:
Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Temperature Rating: 90 DEG C, Wire Strip Length: 1-5/8 IN, Tongue Angle: Straight, Finish: Electro-Tin Plated, Die Index: L115, Color Code: Yellow, Tools, Die Set Catalog
Standard:
UL 486A-486B
Sub Brand:
HYLUG
Tech Drawing Link:
Tech Drawing
Type:
Standard Barrel, Tin Plated
UNSPSC:
39121405
Voltage Rating:
35
Weight:
1.020 L
