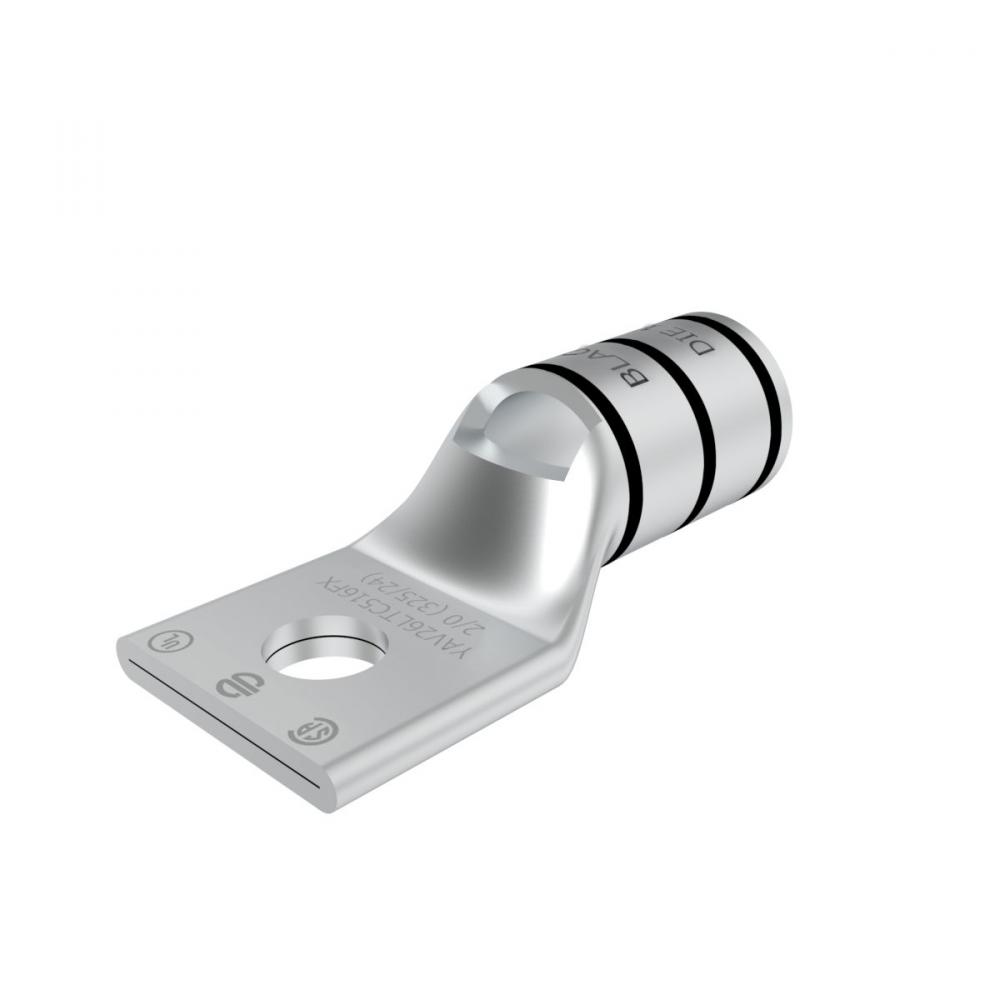

CU. COMP. TERM. - 2/0 FL

Burndy-US, a Hubbell affiliate
CU. COMP. TERM. - 2/0 FL

Part Number: YAV26LTC516FX
UPC: 00781810021996
Call for Price
  • Manufacturer may be Out Of Stock.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
2/0 Flex G,H,I,K,M,DLO, 2/0 AWG CU, One Hole, 5/16 Stud Size, Standard Barrel, Inspection Window Internal Chamfer, Tin Plated, UL/CSA, 90?C, Up to 35kV, Black Color Code, 13 Die Index.
Specifications
Details
Product Height:
0.63"
Product Width:
0.93"
Product Length:
1.98"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Lugs
Application:
Wire Termination
Brand Name:
BURNDY
Brochure:
Manufacturer Brochure
Color Code:
Black
Country Of Origin:
US
Installation Link:
Installation Instructions
Lead Time:
11.000 WK
Line Drawing Link:
Line Drawing
Material:
Copper
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Spec Sheet:
Spec Link
Special Features:
Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Temperature Rating: 90 DEG C, Die Index: 13, Wire Strip Length: 13/16 IN, Tongue Angle: Straight, Finish: Electro-Tin Plated, Color Code: Black, Tools, Die Set Catalog Num
Standard:
UL 486A-486B
Sub Brand:
HYLUG
Tech Drawing Link:
Tech Drawing
Type:
Standard Barrel, Tin Plated
UNSPSC:
39121405
Voltage Rating:
35
Weight:
.070 L
