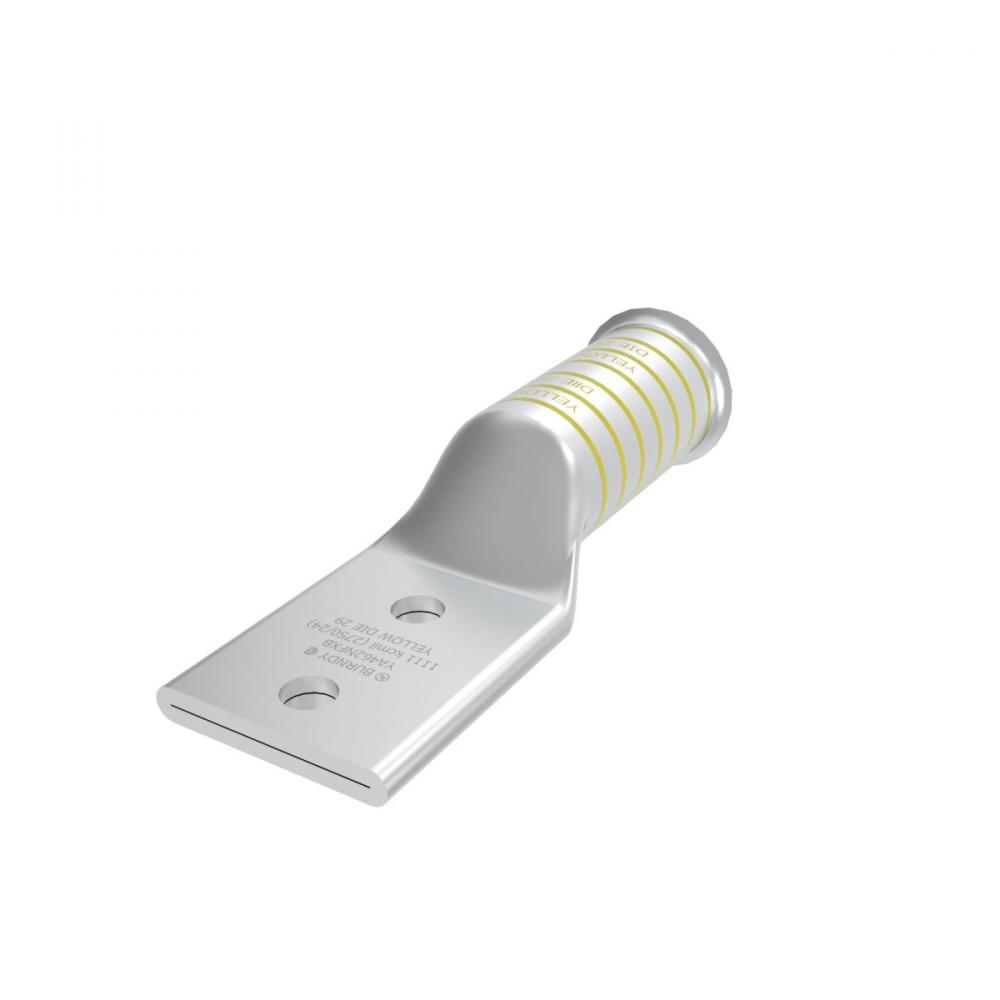

BELLED CU LUG-1000 FLEX-

Burndy-US, a Hubbell affiliate
BELLED CU LUG-1000 FLEX-

Part Number: YA462NFXB
UPC: 00781810038949
Call for Price
  • Manufacturer may be Out Of Stock.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
1111 KCMILDLO CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Long Barrel, Bell End, Tin Plated, UL/CSA, 90?C, Up to 35kV, Color Code, Die Index.
Specifications
Details
Product Height:
1.84"
Product Width:
2.69"
Product Length:
7.91"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Lugs
Application:
Wire Termination
Brand Name:
BURNDY
Brochure:
Manufacturer Brochure
Country Of Origin:
US
Installation Link:
Installation Instructions
Lead Time:
11.000 WK
Line Drawing Link:
Line Drawing
Material:
Copper
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Spec Sheet:
Spec Link
Special Features:
Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Wire Strip Length: 3-11/16 IN, Finish: Electro-Tin Plated, Die Index: 29, Color Code: Yellow, Tools, Die Set Catalog
Standard:
UL 486A-486B
Sub Brand:
HYLUG
Tech Drawing Link:
Tech Drawing
Type:
Long Barrel, Tin Plated
UNSPSC:
39121405
Voltage Rating:
35
Weight:
2.630 L
