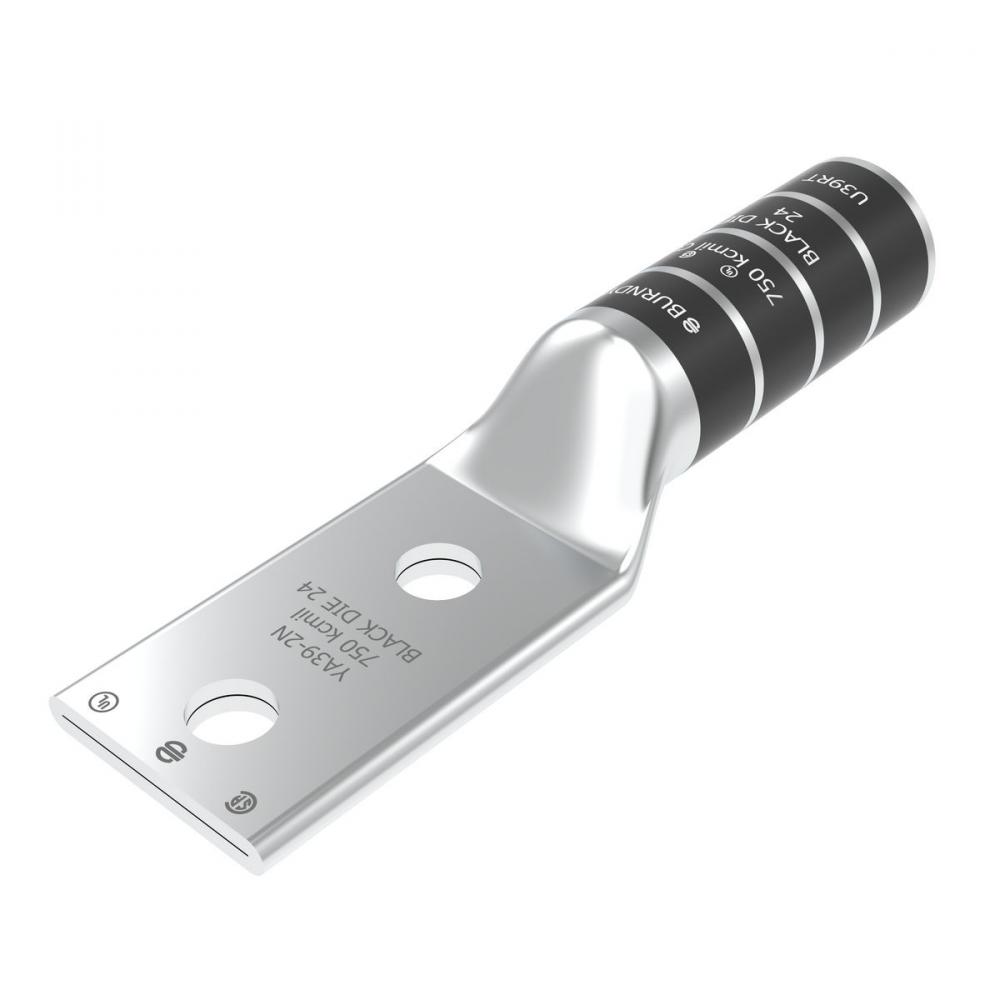

750 CU 2-HOLE LONG NEMA

Burndy-US, a Hubbell affiliate
750 CU 2-HOLE LONG NEMA

Part Number: YA392N
UPC: 00781810522356
Call for Price
  • Manufacturer may be Out Of Stock.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Copper Compression Lug, 2 Hole w/o Inspection Window, 750 kcmil, 1/2" Stud, 1-3/4" Stud Hole Spacing, Long Barrel, Tin Plated.
Specifications
Details
Product Height:
1.30"
Product Width:
1.91"
Product Length:
6.87"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Lugs
Application:
Wire Termination
Brand Name:
BURNDY
Brochure:
Manufacturer Brochure
Color Code:
Black
Country Of Origin:
US
Installation Link:
Installation Instructions
Lead Time:
10.000 WK
Line Drawing Link:
Line Drawing
Material:
Copper
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Spec Sheet:
Spec Link
Special Features:
Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Die Index: 24, Wire Strip Length: 2-3/4 IN, Finish: Electro-Tin Plated, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Color Code: Black, Tools, Die Set Catalog Num
Standard:
UL 486A-486B
Sub Brand:
HYLUG
Tech Drawing Link:
Tech Drawing
Type:
Long Barrel, Tin Plated
UNSPSC:
39121405
Voltage Rating:
35
Weight:
1.143 L
