Appleton Electric

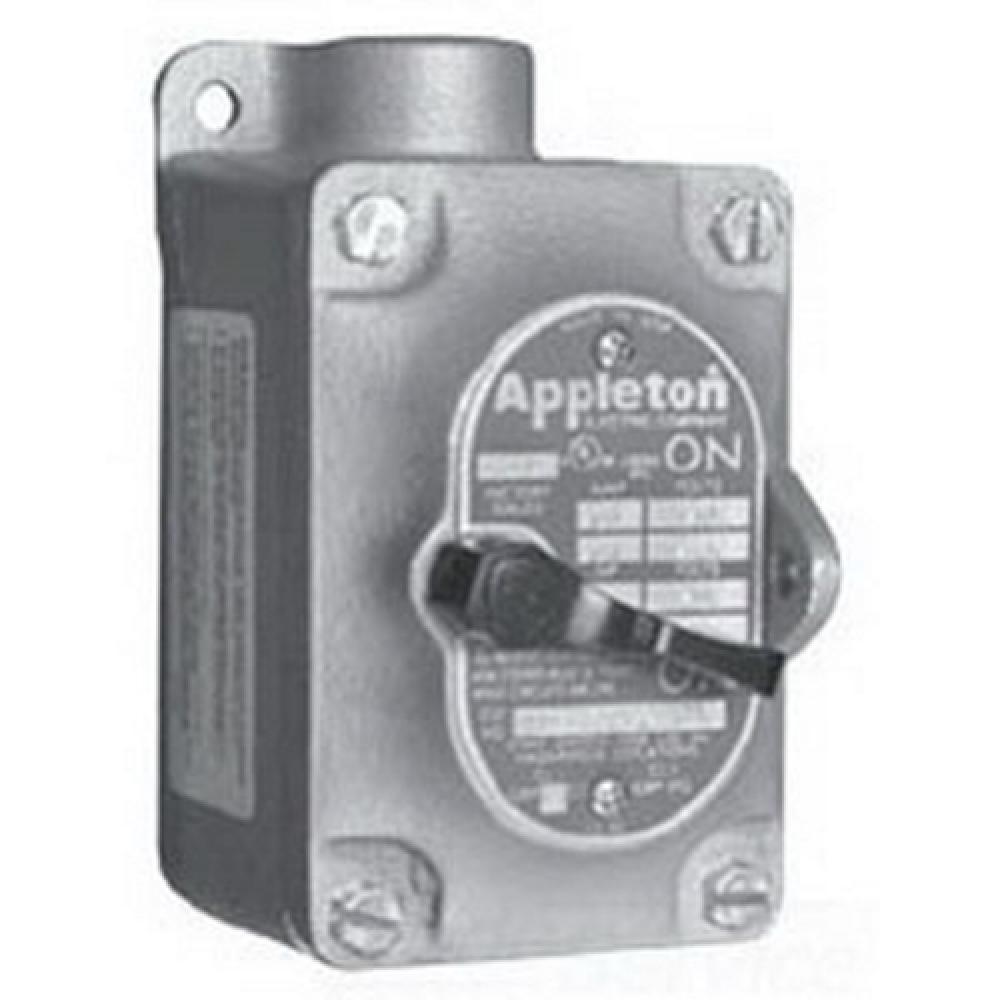

SW 3 WAY SGL GANG 20A 3/4 IN
Part Number: EFS175-F3W
UPC: 00781381279857
Call for Price
- Manufacturer may be Out Of Stock.
Quantity:
Product Overview
UNILETS EFS Series 1-Gang 3-Way Tumbler Switch, Voltage Rating: 120 - 277 VAC, Amperage Rating: 20 AMP, Actuator: Front Operated, Enclosure: NEMA 7CD, 9EFG, Mounting: Surface Mount With 3/4 IN Dead-End Hub, HP Rating: 1 HP At 120 VAC, 2 HP At 240 VAC, Material: Malleable Iron Body, Nylon 6/6 Handle, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Height: 4.63 IN, Width: 3 IN, Depth: 4.53 IN, Standard: UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G And Class III, For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present
Specifications
Details
Product Height:
4.80"
Product Width:
5.80"
Product Length:
7.60"
Electrical Category:
Control And Automation
Electrical Subcategory:
Controls And Accessories
Amperage Rating:
20
Application:
For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present
Brand Name:
Appleton
Country Of Origin:
MX
Enclosure:
NEMA 7CD, 9EFG
Mounting:
Surface Mount With 3/4 IN Dead-End Hub
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Special Features:
Enclosures have external mounting lugs for ease of mounting; Smooth, rounded integral bushing in each hub protects conductor insulation; Enclosures furnished with internal ground screw; Smooth ground mating surfaces assure flame-tight joint between cover a
Standard:
UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G And Class III
Sub Brand:
UNILETS
Type:
EFS Series 1-Gang 3-Way Tumbler Switch
UNSPSC:
39121565
Voltage Rating:
120 - 277
Warranty Link:
Weight:
5.860 L
