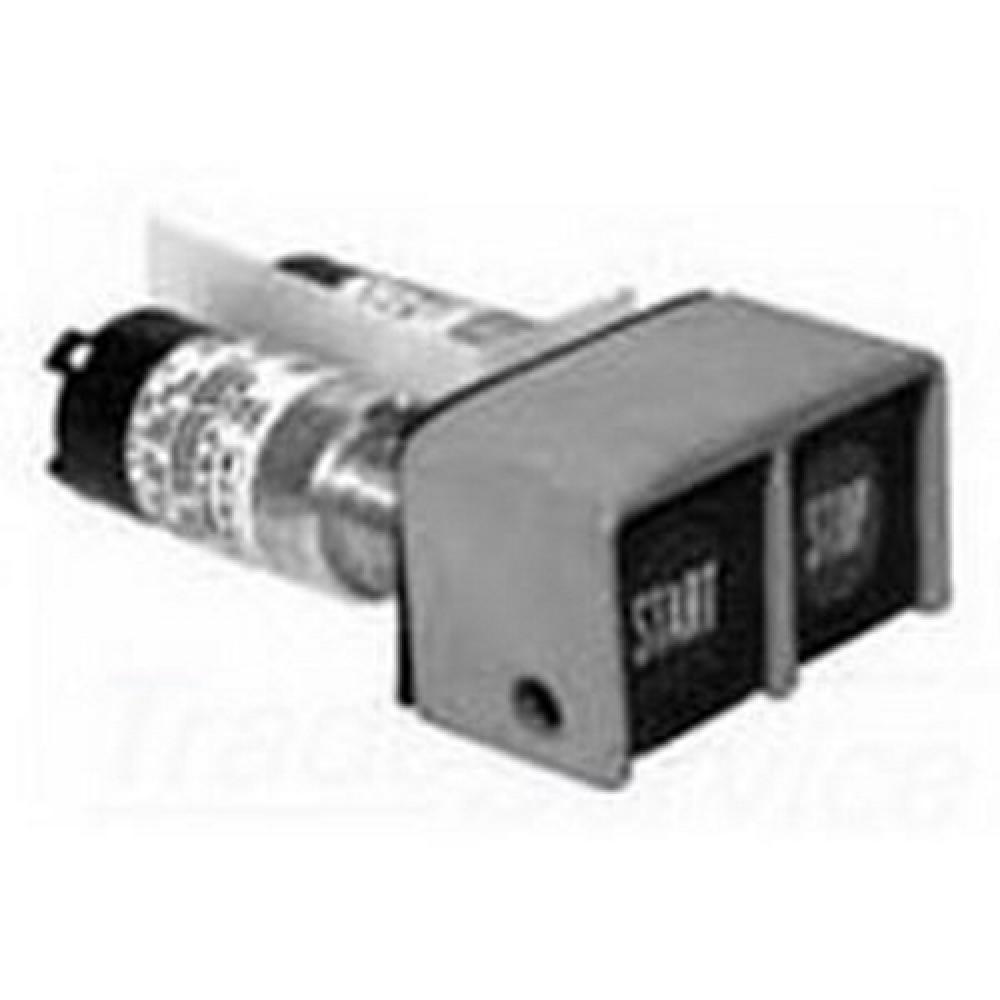

PB UNIV DBL WITH GUARD

Appleton Electric
PB UNIV DBL WITH GUARD

Part Number: SPBBU2DBL
UPC: 00781381141741
Call for Price
  • Manufacturer may be Out Of Stock.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Contender SPBB Series Double Push Button Switch With Guard, Action: Momentary, Contact Configuration: 1 NO/1 NC, Contact Rating: 10 AMP At 600 VAC, Mounting: Surface Mount With 1/2 IN NPSM, Material: Copperfree (4/10 of 1 PCT Maximum) Aluminum, Finish: Natural, Standard: UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1, Groups C, D , Class I, Division 2, Groups B, C, D, Class II, Division 1 And 2, Groups E, F, G And Class III, For Remote Control Of Motors
Specifications
Details
Product Height:
6.00"
Product Width:
5.80"
Product Length:
5.20"
Category:
Lighting Controls
Action:
Momentary
Application:
For Remote Control Of Motors
Brand Name:
Appleton
Contact Configuration:
1 NO/1 NC
Contact Rating:
10 AMP At 600 VAC
Country Of Origin:
MX
Mounting:
Surface Mount With 1/2 IN NPSM
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Spec Link
Special Features:
Finish is epoxy powdercoat for enhanced corrosion resistance; Large backbox for ample wiring room; Ground screw installed in bodies for ground continuity; Corrosion resistant stainless steel hex head captive screws hold covers to body; Factory sealed enclo
Standard:
UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1, Groups C, D , Class I, Division 2, Groups B, C, D, Class II, Division 1 And 2, Groups E, F, G And Class III
Sub Brand:
Contender
Type:
SPBB Series Double Push Button Switch With Guard
UNSPSC:
39122216
Warranty Link:
Warranty Information
Weight:
.480 L
