Appleton Electric

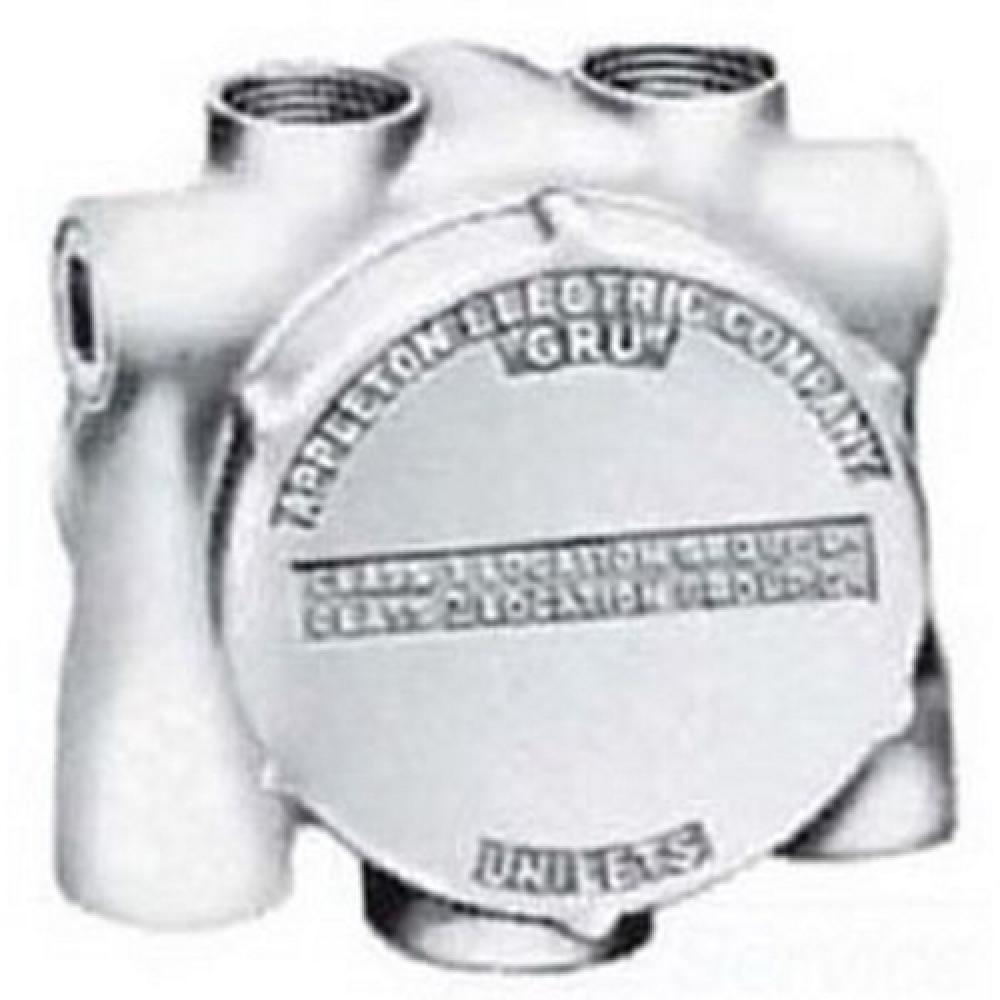

JUNCTION UNILET W/COVER
Part Number: GRUO-2
UPC: 00781381446150
Call for Price
- Manufacturer availability unknown.
Quantity:
Product Overview
UNILETS GRUO Outlet Box, Number Of Outlet: 8, Material: Malleable Iron, Size: 3/4 - 1 IN, Cable Entry: (1) 3/4 IN Hub On Each Side, (2) 3/4 IN Hub On Top, (2) 3/4 IN Hub At Bottom, (1) 1 IN Hub At Bottom, (1) 3/4 IN Hub At Back, Cubic Capacity: 25 CU-IN, Knockouts: No, Cover Opening: 3-1/4 IN, Height: 5.13 IN, Width: 5-1/4 IN, Depth: 2.19 IN, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Standard: UL 886, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, 025875, 013017 Certified, Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G, Class III, For Use With Threaded Metal Conduit
Specifications
Details
Product Height:
4.00"
Product Width:
7.00"
Product Length:
7.00"
Electrical Category:
Electrical Boxes And Enclosures
Electrical Subcategory:
Utility Boxes
Application:
For Use With Threaded Metal Conduit
Brand Name:
Appleton
Cable Entry:
(1) 3/4 IN Hub On Each Side, (2) 3/4 IN Hub On Top, (2) 3/4 IN Hub At Bottom, (1) 1 IN Hub At Bottom, (1) 3/4 IN Hub At Back
Country Of Origin:
MX
Cubic Capacity:
25
Knockouts:
No
Material:
Malleable Iron
Number Of Outlet:
8
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
3/4 - 1
Spec Sheet:
Special Features:
Explosionproof, dust-ignitionproof; Malleable iron bodies have high tensile strength and ductility, provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished wi
Standard:
UL 886, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, 025875, 013017 Certified, Class I, Division 1 And 2, Groups C, D; Class II, Division 1 And 2, Groups E, F, G; Class III
Stock Type:
Shelf Stock
Sub Brand:
UNILETS
Type:
GRUO Outlet Box
UNSPSC:
39121308
Warranty Link:
Weight:
4.480 L
