Appleton Electric

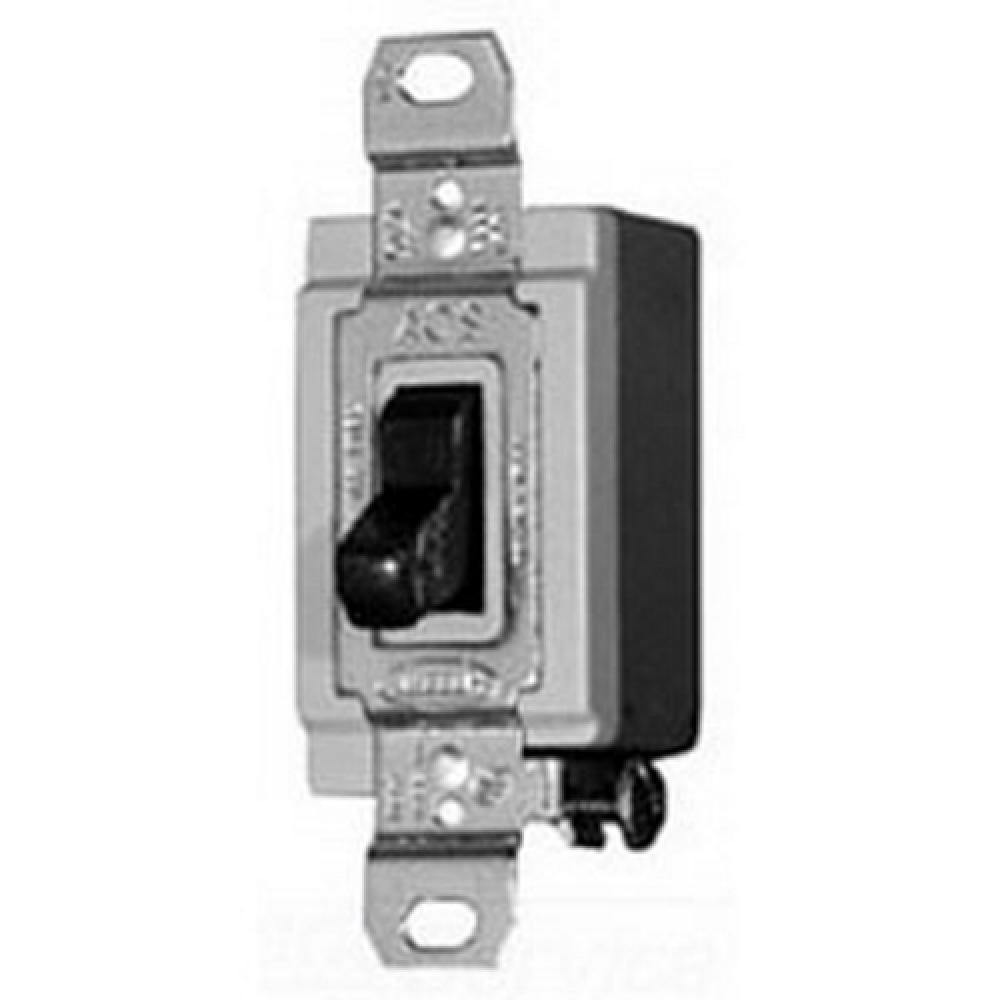

EFS TUMBLER SWITCH
Part Number: EFS-FR1-Q
UPC: 00781381287302
Call for Price
- Manufacturer availability unknown.
Quantity:
Product Overview
UNILETS EFS Series 1-Gang Tumbler Switch, Voltage Rating: 120 - 277 VAC, Amperage Rating: 20 AMP, Number Of Poles: 1, Enclosure: NEMA 7CD, 9EFG, HP Rating: 1 HP At 120 VAC, 2 HP At 240 VAC, Material: Malleable Iron Body, Nylon 6/6 Handle, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Height: 4.63 IN, Width: 3 IN, Depth: 1.6 IN, Standard: UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G And Class III, For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present
Specifications
Details
Product Height:
4.20"
Product Width:
5.10"
Product Length:
7.20"
Electrical Category:
Control And Automation
Electrical Subcategory:
Controls And Accessories
Amperage Rating:
20
Application:
For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present
Brand Name:
Appleton
Country Of Origin:
CN
Enclosure:
NEMA 7CD, 9EFG
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Special Features:
Enclosures have external mounting lugs for ease of mounting; Smooth, rounded integral bushing in each hub protects conductor insulation; Enclosures furnished with internal ground screw; Smooth ground mating surfaces assure flame-tight joint between cover a
Standard:
UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G And Class III
Stock Type:
Shelf Stock
Sub Brand:
UNILETS
Type:
EFS Series 1-Gang Tumbler Switch
UNSPSC:
39121565
Voltage Rating:
120 - 277
Warranty Link:
Weight:
.190 L
