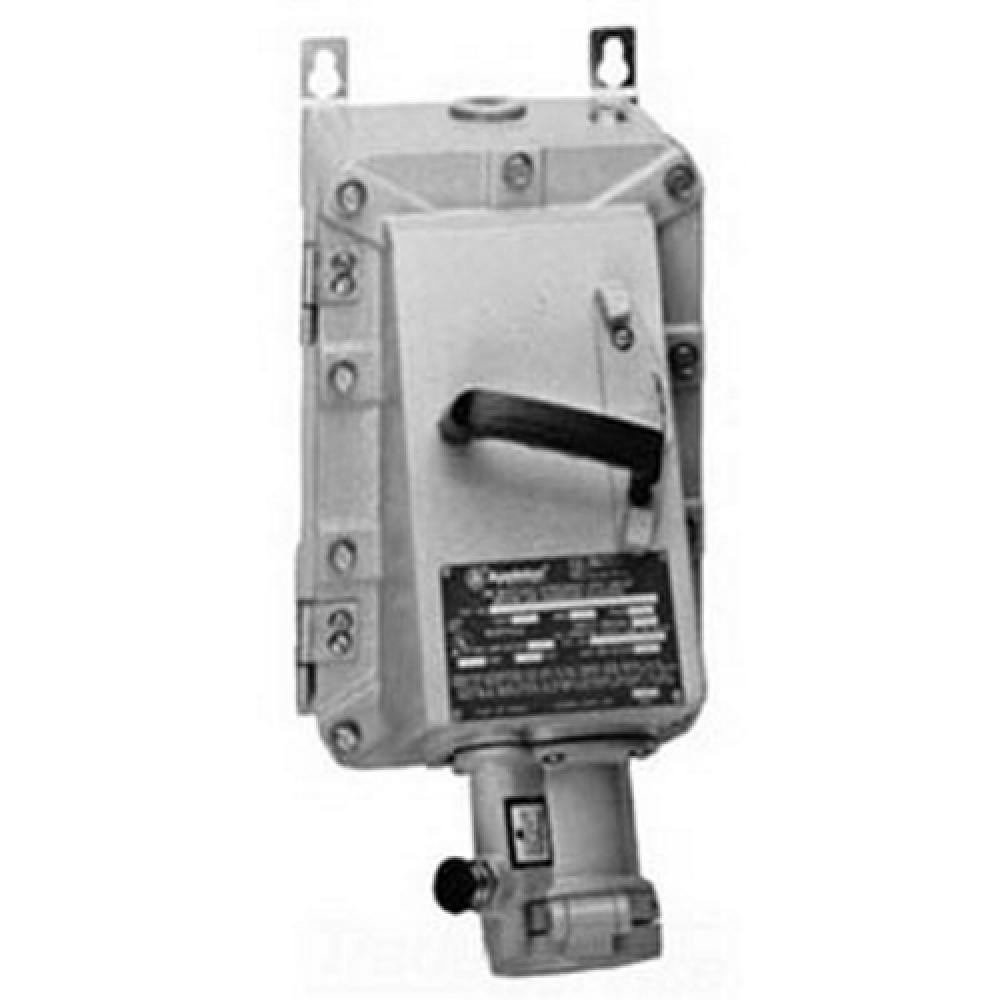

EBR 150A II 3W4P FD 150A BRKR

Appleton Electric
EBR 150A II 3W4P FD 150A BRKR

Part Number: EBR15034FD150
UPC: 00781381089906
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
EBR Series Receptacle With Mounting Box, Number Of Poles: 4, Number Of Wires: 3, Amperage Rating: 150 AMP, Voltage Rating: 600 VAC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Nema Rating: NEMA 3, 3R, 4, 4X,
Specifications
Details
Product Height:
21.50"
Product Width:
18.50"
Product Length:
22.50"
Electrical Category:
Electrical Distribution Equipment , Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles , Receptacle
Amperage Rating:
150
Application:
For ACP Plugs
Brand Name:
Appleton
Connection:
Pressure Wire Terminal
Country Of Origin:
MX
Material:
Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Mounting:
Surface Mount With 1-1/2 IN Threaded Conduit Opening
NEMA Rating:
NEMA 3, 3R, 4, 4X, 7CD, 9FG
Number Of Poles:
4
Number Of Wires:
3
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
3
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Spec Link
Special Features:
Includes 3-pole 150 AMP FD circuit breaker; Interlocked circuit breaker provides interlocked connect and disconnect operation as well as short circuit and thermal time delay overload protection; Explosionproof, dust-Ignitionproof; Weatherproof spring cover
Standard:
Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups F, G; Class III; UL 1010 (UL 1203), UL 894, UL 1682, UL 1686; UL Listed: E79132, E10784, E313360
Stock Type:
Shelf Stock
Type:
EBR Series Receptacle With Mounting Box
UNSPSC:
39121406
Voltage Rating:
600
Warranty Link:
Warranty Information
Weight:
42.290 L
