Appleton Electric
CONTROL STATIONS - CONTENDER S
Part Number: EDS2714
UPC: 00781381901987
Call for Price
- Manufacturer availability unknown.
Quantity:
Product Overview

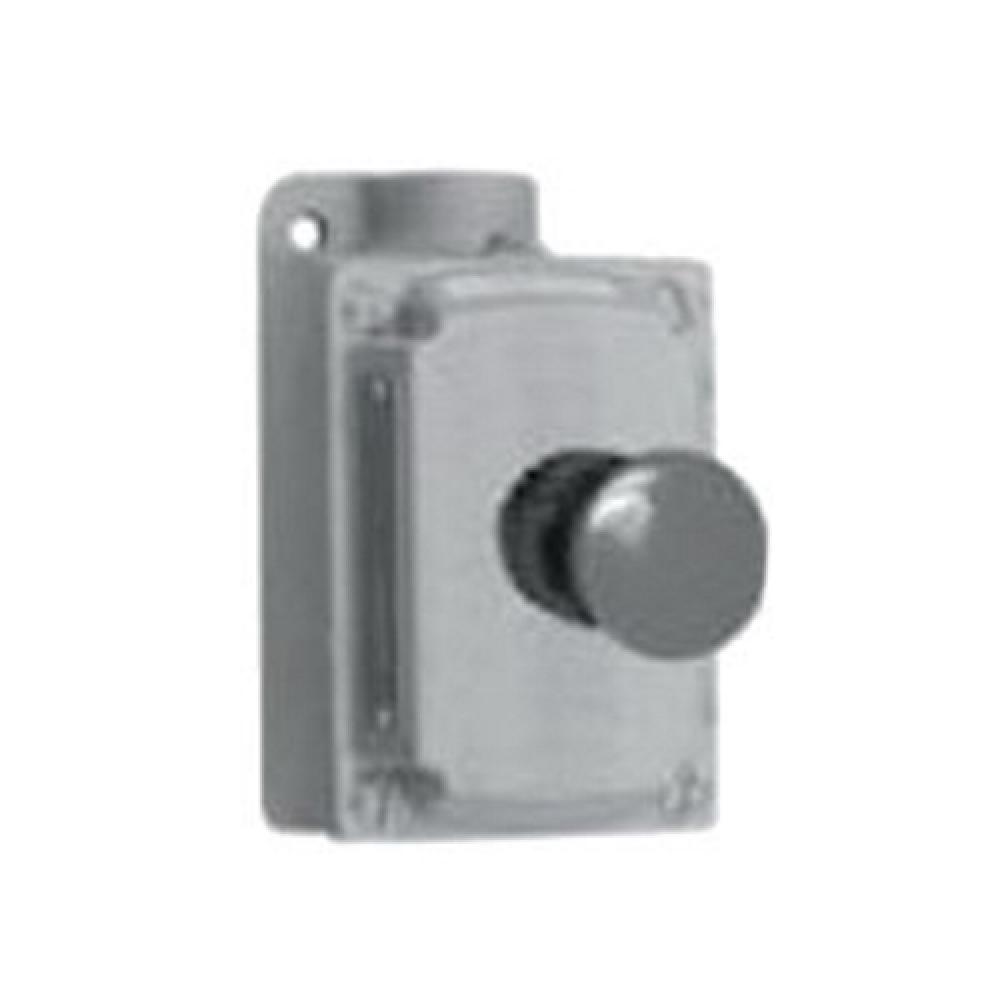

Contender EDS Series 1-Gang 1 Circuit Push Button Switch, Action: Maintained, Contact Configuration: 1 NO/1 NC, Contact Rating: 10 AMP At 600 VAC, Actuator: Red Mushroom Head, Enclosure: NEMA 3, 7CD, 9EFG, Mounting: Surface Mount With 3/4 IN Dead-End Hub, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Height: 5.31 IN, Width: 3.72 IN, Depth: 3.06 IN, Legend: Emergency Stop, Standard: UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1, Groups C, D , Class I, Division 2, Groups B, C, D Class II, Division 1 And 2, Groups E, F, G And Class III, For Remote Control Of Motors
Specifications
Details
Product Height:
6.00"
Product Width:
7.40"
Product Length:
7.40"
Electrical Category:
Control And Automation
Electrical Subcategory:
Controls And Accessories
Action:
Maintained
Application:
For Remote Control Of Motors
Brand Name:
Appleton
Country Of Origin:
MX
Enclosure:
NEMA 3, 7CD, 9EFG
Mounting:
Surface Mount With 3/4 IN Dead-End Hub
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
No
Spec Sheet:
Special Features:
Covers are UL Listed when used on Contender bodies; Ground screw installed in bodies for ground continuity; Corrosion resistant stainless steel hex head captive screws hold covers to body; Factory sealed enclosure eliminates need for adding sealing fitting
Standard:
UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1, Groups C, D , Class I, Division 2, Groups B, C, D Class II, Division 1 And 2, Groups E, F, G And Class III
Stock Type:
Shelf Stock
Sub Brand:
Contender
Type:
EDS Series 1-Gang 1 Circuit Push Button Switch
UNSPSC:
39121565
Warranty Link:
Weight:
10.060 L
