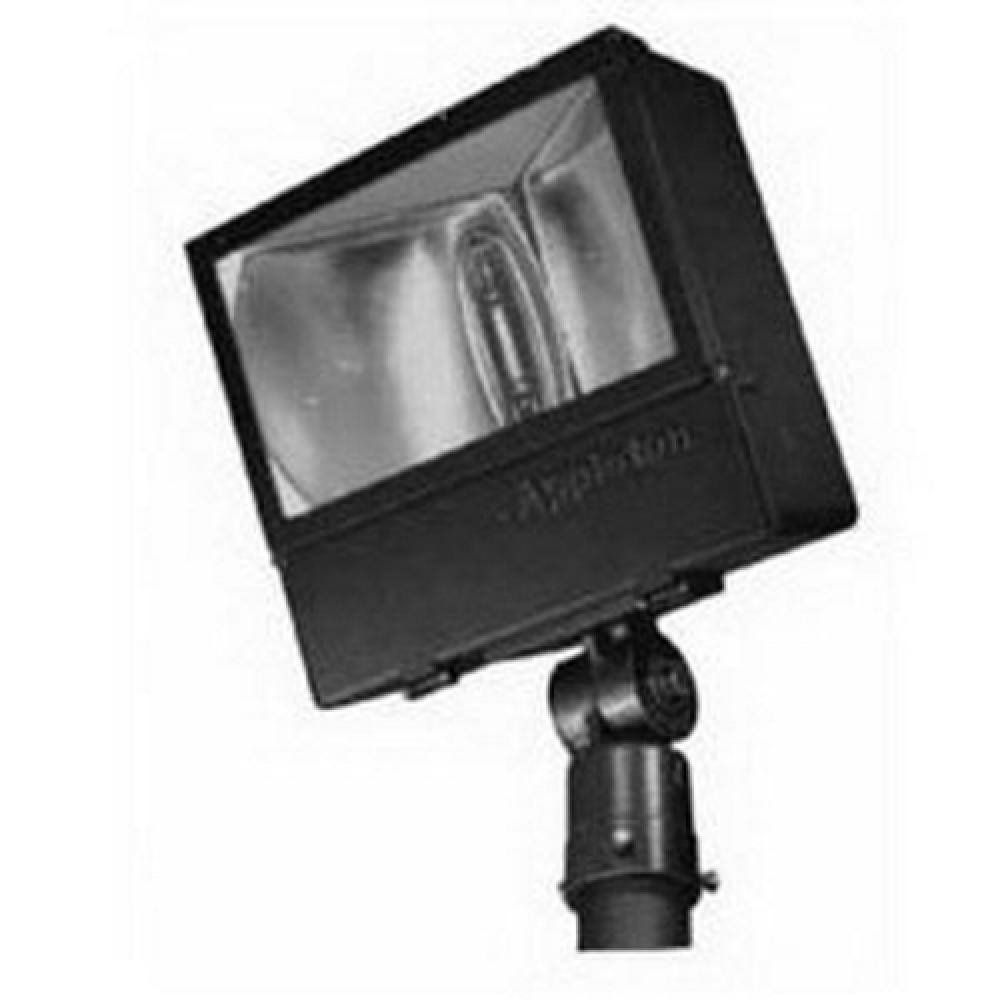

Appleton Areamaster 250/400 Integrally Ballasted Floodlight, Fixture Type: Pole/Slip Fit Mount, Lamp Type: 400 WTT Mogul Pulse Start Metal Halide, Lamp Wattage: 400 WTT, Voltage Rating: 120/208/240/277/480 V, Number Of Lamps: 1, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum Lens Door, Silicone Rubber Gasket, Porcelain Socket, Stainless Steel Bolts, Fixture Wattage: 454 WTT, Amperage Rating: 0.9 AMP Starting, 1 AMP Operating At 480 V, Length: 433.4 MM, Width: 187.3 MM, Height: 635 MM, Housing Finish: Architectural Bronze Polyester, Housing Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Ambient Temperature Range: 55 DEG C, Temperature Range: 115 DEG C Supply Wire, Lens Material: Glass, Ballast Type: Super Constant Wattage Autotransformer (S. C.W.A.), Ballast Quantity: 1, Reflector/Refractor: Alzak Finished Aluminum Reflector, Frequency Rating: 60 HZ, Enclosure: IP66, Standard: NEC: For General, Marine And Hazardous Locations Class I, Division 2, Groups A, B, C,D, Class I, Zone 2, AEx nR, Groups IIA, IIB, IIC, UL Listed: E10794, 1598, 1598A, 844, For Shopping Malls, Parking Lots, Sports Areas, Security Lighting, Industrial Process Lighting

Specifications

Details

Product Height:

9.70"

Product Width:

18.40"

Product Length:

25.40"

Electrical Category:

Lamps, Bulbs, and Lighting Fixtures

Electrical Subcategory:

Lighting Fixtures

Amperage Rating:

0.9 AMP Starting, 1 AMP Operating At 480 V

Application:

For Shopping Malls, Parking Lots, Sports Areas, Security Lighting, Industrial Process Lighting

Ballast Type:

Super Constant Wattage Autotransformer (S. C.W.A.)

Brand Name:

Appleton

Brochure:

Manufacturer Brochure

Country Of Origin:

Height:

635

Lamp Type:

400 WTT Mogul Pulse Start Metal Halide

Length:

433.4

Material:

Copperfree (4/10 Of 1 PCT Maximum) Aluminum Lens Door, Silicone Rubber Gasket, Porcelain Socket, Stainless Steel Bolts

Number Of Lamps:

Order Minimum:

1.000 EA

Order Multiple:

1.000 EA

RoHS Compliance:

Contact Manufacturer

Spec Sheet:

Spec Link

Special Features:

This series of Areamaster floodlights provides powerful, efficient, weatherproof lighting for medium and large areas and is suitable for marine and hazardous location service; Compact, attractively styled contemporary design that is rugged and dependable;

Standard:

NEC: For General, Marine And Hazardous Locations Class I, Division 2, Groups A, B, C, D; Class I, Zone 2, AEx nR, Groups IIA, IIB, IIC; UL Listed: E10794, 1598, 1598A, 844

Sub Brand:

Areamaster 250/400

Type:

Integrally Ballasted Floodlight

UNSPSC:

39111524

Voltage Rating:

120/208/240/277/480

Warranty Link:

Warranty Information

Weight:

36.450 L

Width:

187.3

Appleton Electric AREAMASTER 400W PSMH 5MT SF

Appleton Electric
AREAMASTER 400W PSMH 5MT SF
