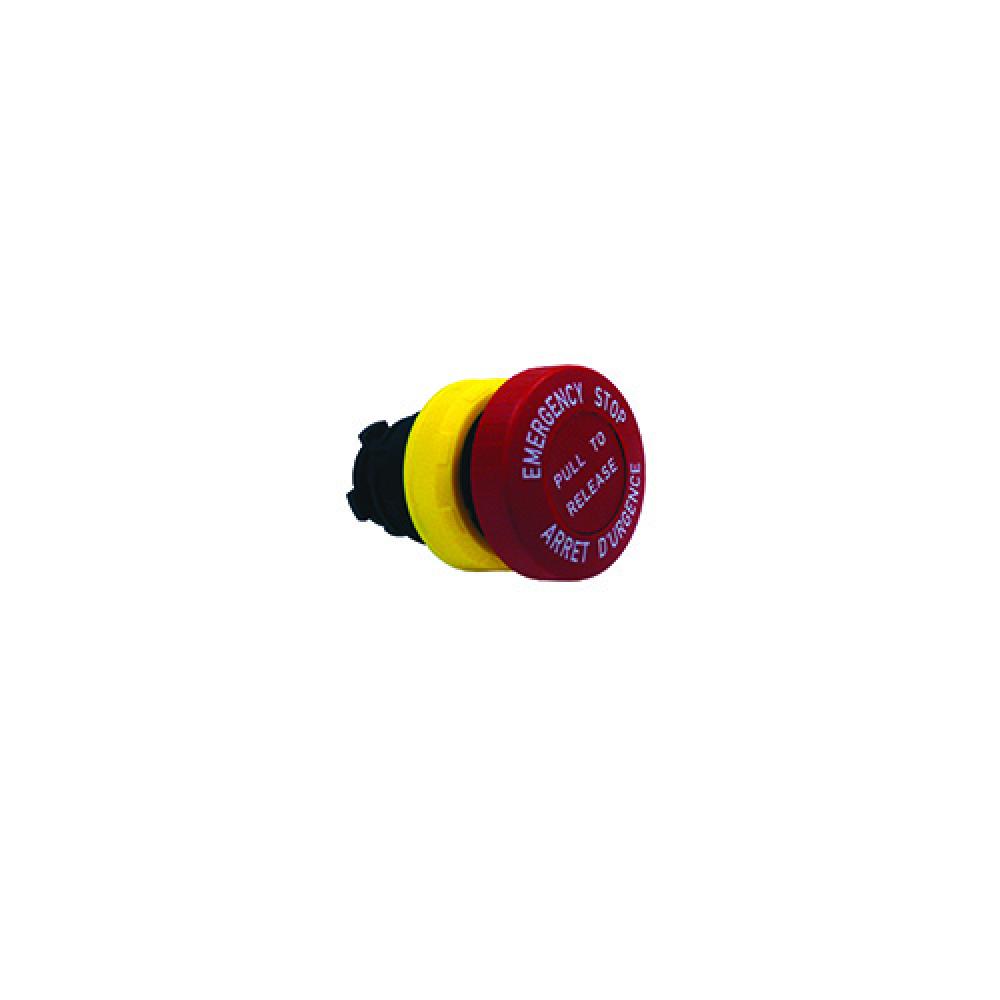

ACTUATOR MUSH HEAD MAIN RED

Appleton Electric
ACTUATOR MUSH HEAD MAIN RED

Part Number: UD0R
UPC: 00781381268790
Call for Price
  • Manufacturer may be Out Of Stock.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Non-Illuminated Pushbutton Actuator, Type Push-Pull, Mushroom Head, Operation Type Maintained, Body Material Polyamide, Color Red, Enclosure Zone 1 and 2-21 and 22, Ex II 2 GD, IP66, IK10, Size 1.59 Inch Dia x 2.3 inch H, Mounting Type Rail
Specifications
Details
Product Height:
2.30"
Product Width:
1.59"
Product Length:
1.59"
Category:
Lighting Controls
Brand Name:
Appleton
Contact Rating:
Rated operating voltage (Ue): 500 Vac - 110 Vdc / Switching capacity: AC12: 16 Amp/400 Vac / AC14: 10 Amp/400 Vac / AC15: 6 Amp/500 Vac / DC13: 2 Amp/24 Vdc and 1 Amp/110 Vdc
Country Of Origin:
FR
Enclosure:
Body: polyamide / Lens: polycarbonate
Operating Cycles:
100,000 hours
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Spec Link
Sub Brand:
Unicode 2
UNSPSC:
39122216
Weight:
.099 L
