ACTUATOR GREEN ILLUM PB

Appleton Electric
ACTUATOR GREEN ILLUM PB

Part Number: ULG0R
UPC: 00781381264310
Call for Price
  • Manufacturer may be Out Of Stock.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview

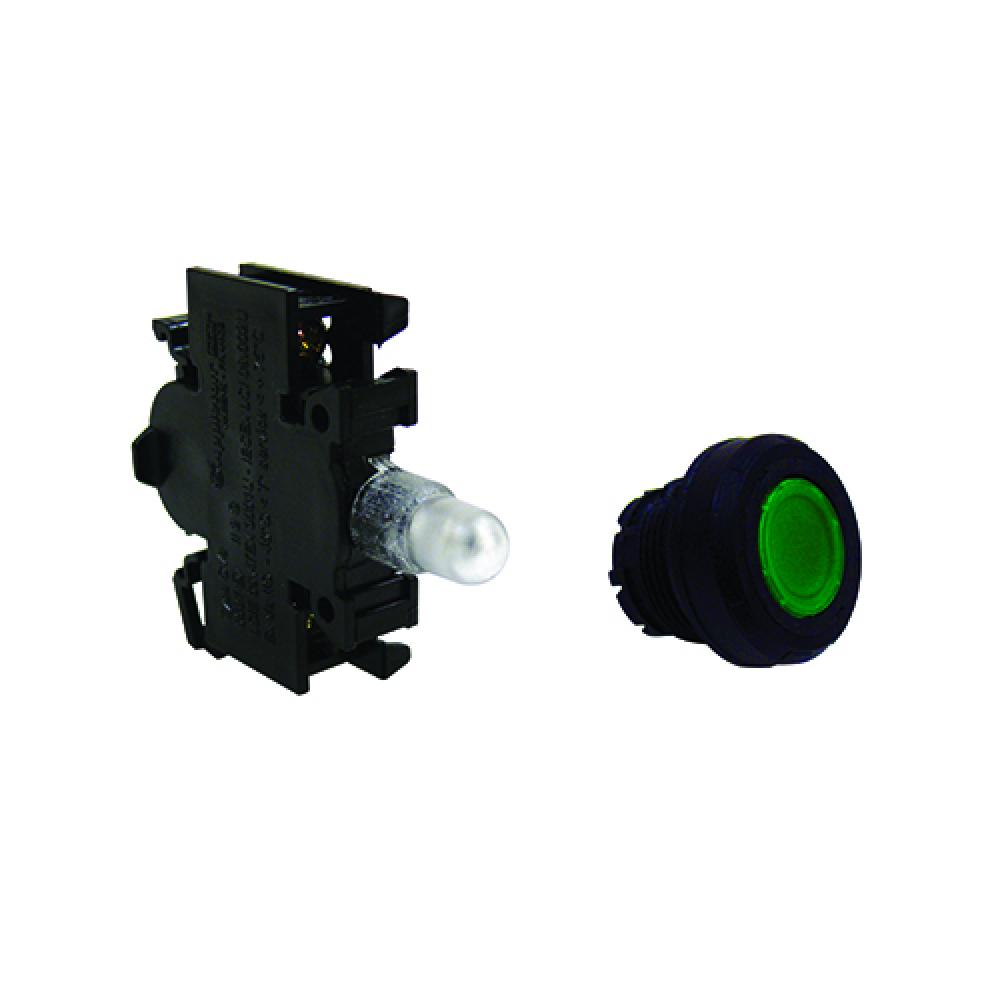

Illuminated Pushbutton Actuator, Type Spring Return, Lamp Input Type 12 to 254 VAC at 50/60 Hz, 12 to 60 VDC, Lamp Type LED, Body Material Polyamide, Color Green, Enclosure Zone 1 and 2-21 and 22, Ex II 2 GD, IP66, IK10, Mounting Type Rail, Weight 0.062 kg, Volume 0.26 Cu Inch
Specifications
Details
Product Height:
1.26"
Product Width:
1.54"
Product Length:
1.54"
Category:
Lighting Controls
Brand Name:
Appleton
Contact Rating:
Rated operating voltage (Ue): 500 Vac - 110 Vdc / Switching capacity: AC12: 16 Amp/400 Vac / AC14: 10 Amp/400 Vac / AC15: 6 Amp/500 Vac / DC13: 2 Amp/24 Vdc and 1 Amp/110 Vdc
Country Of Origin:
FR
Enclosure:
Body: polyamide / Lens: polycarbonate
Operating Cycles:
100,000 hours
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Spec Link
Sub Brand:
Unicode 2
UNSPSC:
39122216
Weight:
.137 L
