Appleton Electric

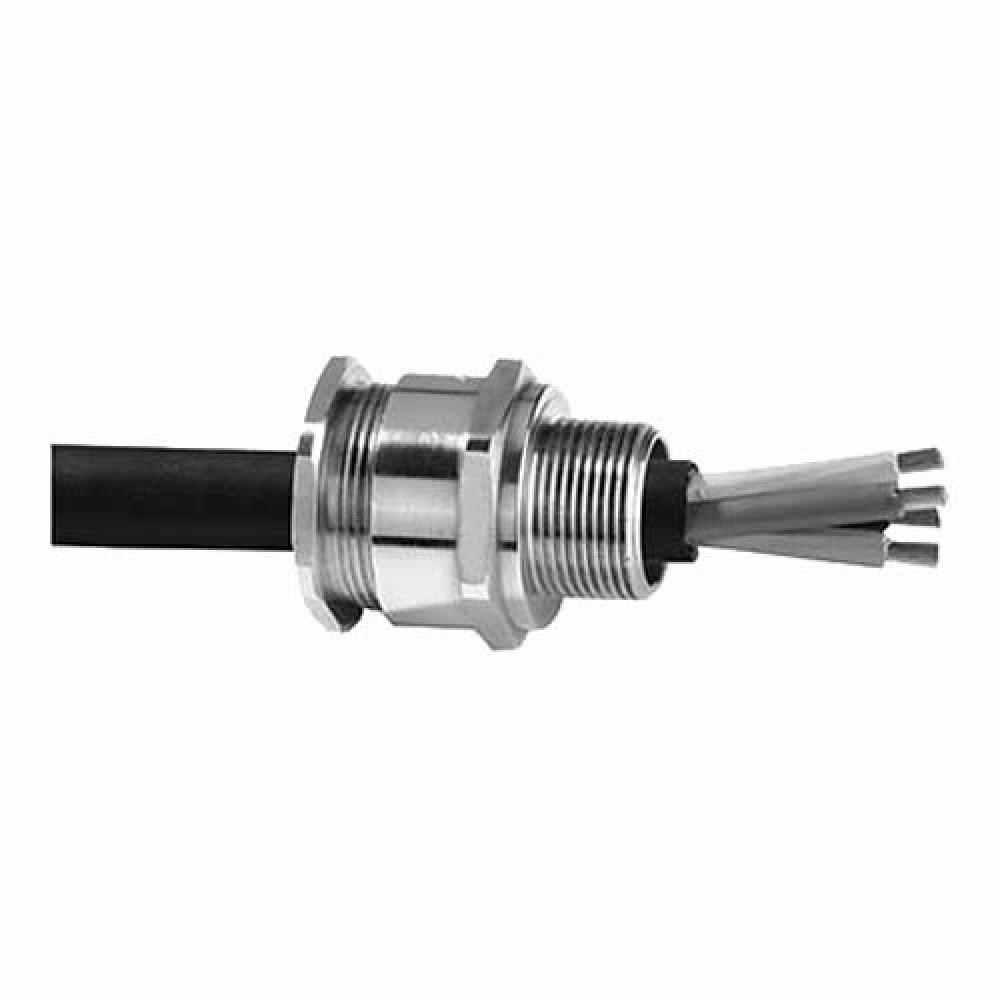

A2F CABLE GLAND 100NPT
Part Number: 32A2F1005
UPC: 00781381248815
Call for Price
- Manufacturer may be Out Of Stock.
Quantity:
Product Overview
Cable Gland, Type Straight, Thread Size 1 Inch NPT, Constructional Feature Flameproof, Weatherproof, Cable Type Unarmored Cable, Cable Outer Diameter 0.67 to 1.04 Inch, Material Nickel Plated Brass, Length 1.65 Inch, Enclosure IP66/IP67/IP68, Operating Temperature -60 to 130 Deg C, Approval CSA C22.2, CAN/CSA E60079-0/E60079-1/E60079-7, Applicable Standard ANSI-ASME B1.20.1, BS 6121, EN/IEC 60079-0/60079-1/60079-7/60079-15/60079-31/61241-0/61241-1, Seal Material Low Smoke Fume Thermoplastic Elastomer, Thread Size 0.59 Inch L, Weight 0.17 Kg
Specifications
Details
Product Height:
0.10"
Product Width:
11.70"
Product Length:
15.90"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Application:
Suitable for use with all forms of equipment protection permitted in Zone 1, Zone 2, Zone 21 and Zone 22 provided always that the prevailing code of practice for selection and installation is observed
Brand Name:
Appleton
Connection:
NPT
Country Of Origin:
GB
Finish:
Nickel Plated
Material:
Body: nickel plated brass. Seal: LSF (Low Smoke Fume) thermoplastic elastomer
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
1 IN (32)
Spec Sheet:
Special Features:
Elastomer displacement seal for unarmored cable provides a combined flameproof and weatherproof seal on the outer sheath of the cable
Type:
A2F Series Nickel Plated Brass Cable Glands
UNSPSC:
39121431
Weight:
.363 L
