Image may not reflect selected features
No Image
Available
Available
Appleton Electric

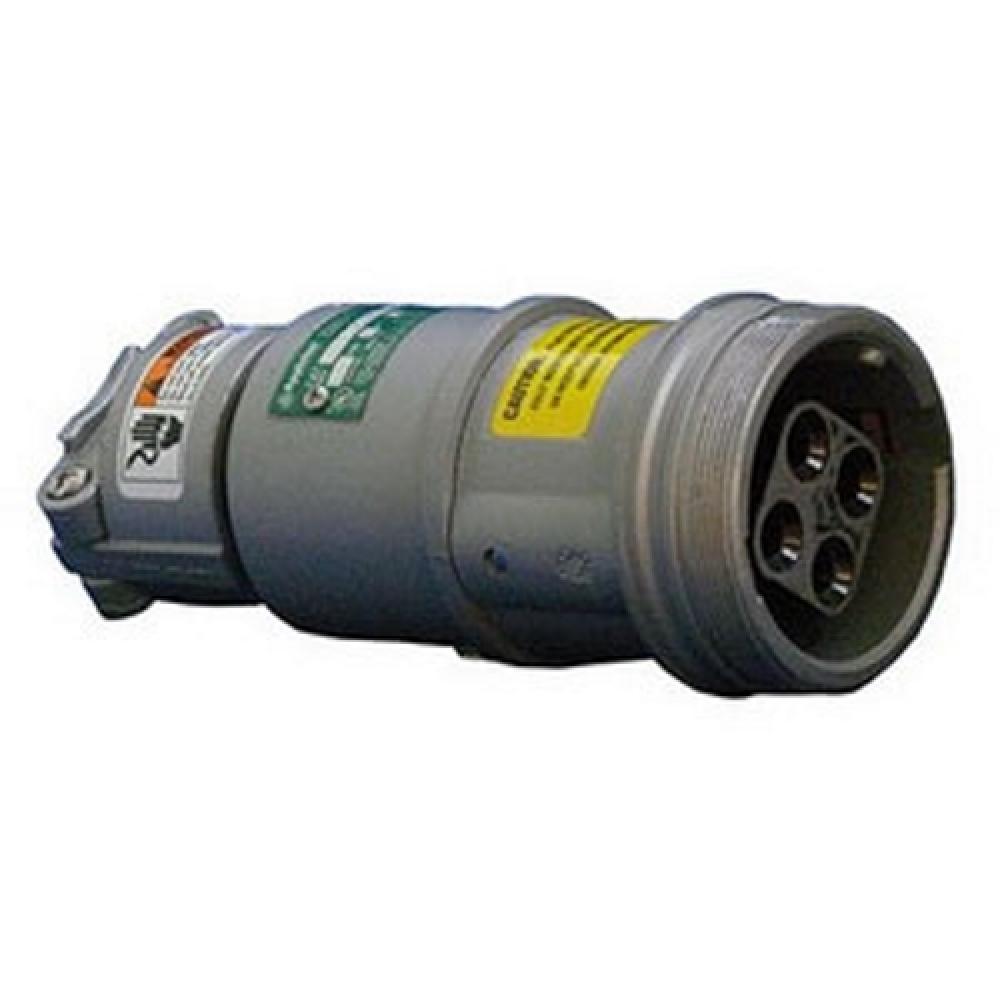

60A CONN BODY ASSY 4P S2
Part Number: ARC6034BC
UPC: 00781381440639
Call for Price
- Manufacturer availability unknown.
Quantity:
Product Overview
Powertite Grounding Style 2 Connector Body, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 6 - 2 AWG (Building), 6 - 4 AWG (Extra Flex), Amperage Rating: 60 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material
Specifications
Details
Product Height:
4.60"
Product Width:
5.10"
Product Length:
8.10"
Electrical Category:
Electrical Distribution Equipment
, Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
, Receptacle
Amperage Rating:
60
Application:
For ACP6034BC Metallic Clamping Ring Plug
Brand Name:
Appleton
Brochure:
Connection:
Pressure Wire Terminal
Country Of Origin:
MX
Material:
Copperfree (4/10 Of 1 PCT Maximum) Aluminum
NEMA Rating:
NEMA 3, 3R, 4, 4X
Number Of Poles:
4
Number Of Wires:
3
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
3
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Special Features:
Grounding style: Shell and extra pole; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and
Standard:
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
Stock Type:
Shelf Stock
Sub Brand:
Powertite
Temperature Rating:
-40 To 107
Type:
Grounding Style 2 Connector Body
UNSPSC:
39121406
Voltage Rating:
600 VAC At 50 - 400 HZ, 250 VDC
Warranty Link:
Weight:
2.820 L
Wire Size:
6 - 2 AWG (Building), 6 - 4 AWG (Extra Flex)
