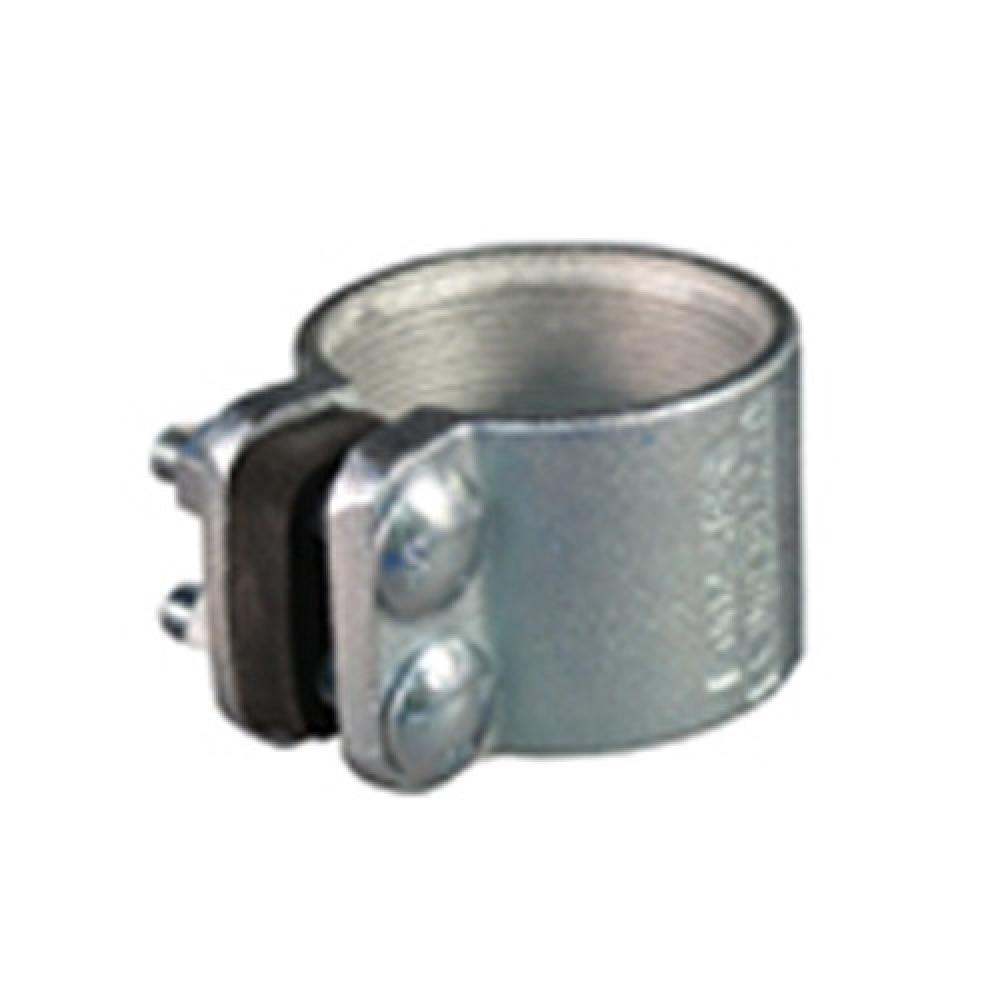

2 IN RIGID SPLIT COUPLING

Appleton Electric
2 IN RIGID SPLIT COUPLING

Part Number: SCC-200
UPC: 00781381441575
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Bolt-On SCC Series Split Coupling, Trade Size: 2 IN, Outside Diameter: 2-3/4 IN, Length: 3-1/2 IN, Flexibility: Rigid And IMC, Material: Malleable Iron Coupling, Steel Hardware, Neoprene Gasket, Connection: Threaded, Finish: Zinc Electroplate, Standard: UL 514B, UL File Number E14814, CSA C22.2 No. 18.4, CSA 702992 Certified, NEMA FB-1, For Threaded Rigid Conduit and IMC
Specifications
Details
Product Height:
3.00"
Product Width:
3.20"
Product Length:
4.30"
Electrical Category:
Conduit and Fittings
Electrical Subcategory:
Conduit Fittings
Application:
For Threaded Rigid Conduit and IMC
Brand Name:
Appleton
Connection:
Threaded
Country Of Origin:
MX
Flexibility:
Rigid And IMC
Length:
3-1/2
Line Drawing Link:
Line Drawing
Material:
Malleable Iron Coupling, Steel Hardware, Neoprene Gasket
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Outside Diameter:
2-3/4
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Spec Link
Special Features:
Concretetight; Fast installation - slip bolt-on coupling over threaded end of one conduit section, butt the end of the second threaded conduit section to the first, slip bolt-on coupling to the center of the two conduit threads and tighten bolts; Provides
Standard:
UL 514B, UL File Number E14814, CSA C22.2 No. 18.4, CSA 702992 Certified, NEMA FB-1
Stock Type:
Shelf Stock
Sub Brand:
Bolt-On
Trade Size:
2
Type:
SCC Series Split Coupling
UNSPSC:
39131707
Warranty Link:
Warranty Information
Weight:
1.140 L
