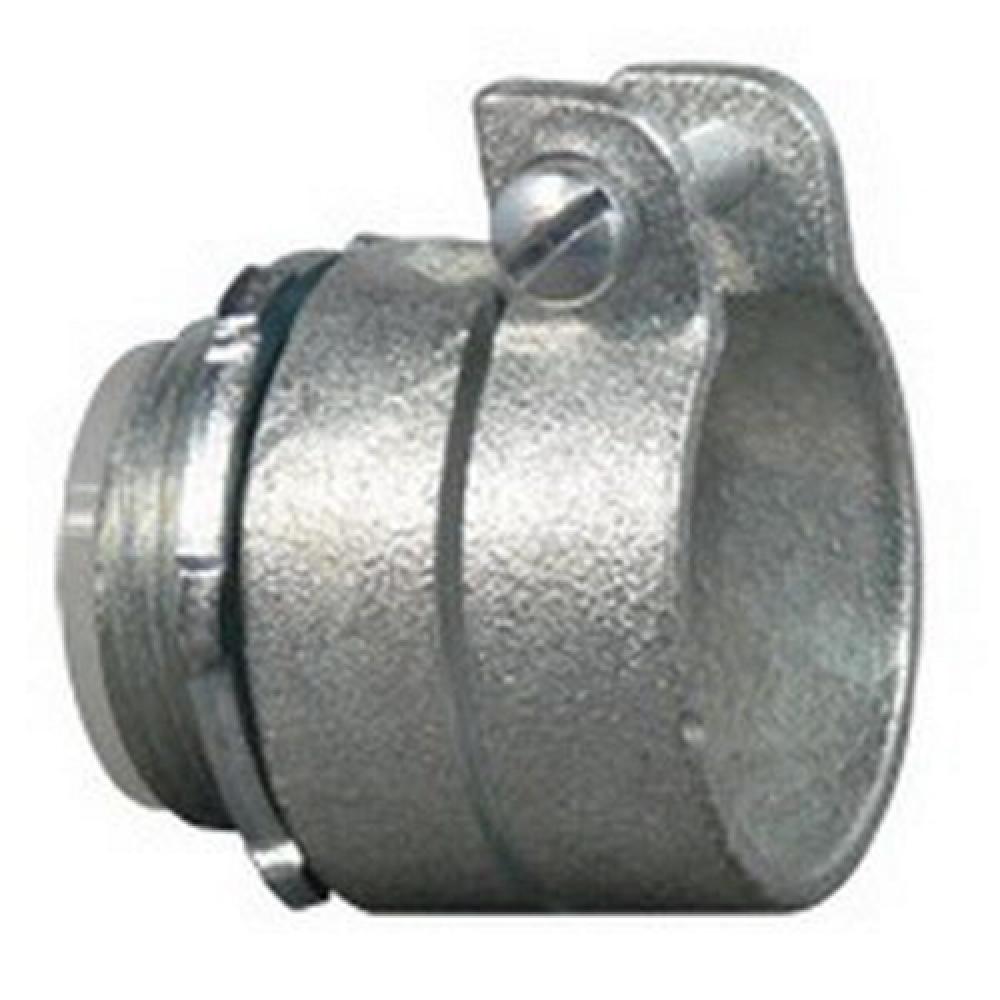

1 IN STRAIGHT BOX CONN INSUL

Appleton Electric
1 IN STRAIGHT BOX CONN INSUL

Part Number: 7483I
UPC: 00781381404136
Call for Price
  • Manufacturer may be Out Of Stock.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Straight Conduit Connector, Size: 1 IN, Conductor Range: 1.03 - 1.38 IN, Material: Malleable Iron, Finish: Zinc Electroplate, Length: 1.13 IN, Width: 1.97 IN, Thread Length: 0.5 IN, Standard: UL 514B, UL Listed: E14814, CSA Standard: C22.2
Specifications
Details
Product Height:
0.60"
Product Width:
5.00"
Product Length:
5.30"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Application:
For Used To Ground And Secure Nonmetallic Sheathed And Service Entrance Cable to Boxes And Enclosures
Brand Name:
Appleton
Conductor Range:
1.03 - 1.38
Country Of Origin:
MX
Finish:
Zinc Electroplate
Line Drawing Link:
Line Drawing
Material:
Malleable Iron
Order Minimum:
5.000 EA
Order Multiple:
5.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
1
Spec Sheet:
Spec Link
Special Features:
Furnished with locknut; Male hub threads-NPS; One screw; Insulated throat version
Standard:
UL 514B, UL Listed: E14814, CSA Standard: C22.2 No. 18.3, CSA Certified: 065178, NEMA FB-1
Type:
Straight Conduit Connector
UNSPSC:
39121419
Warranty Link:
Warranty Information
Weight:
.420 L
