Appleton Electric

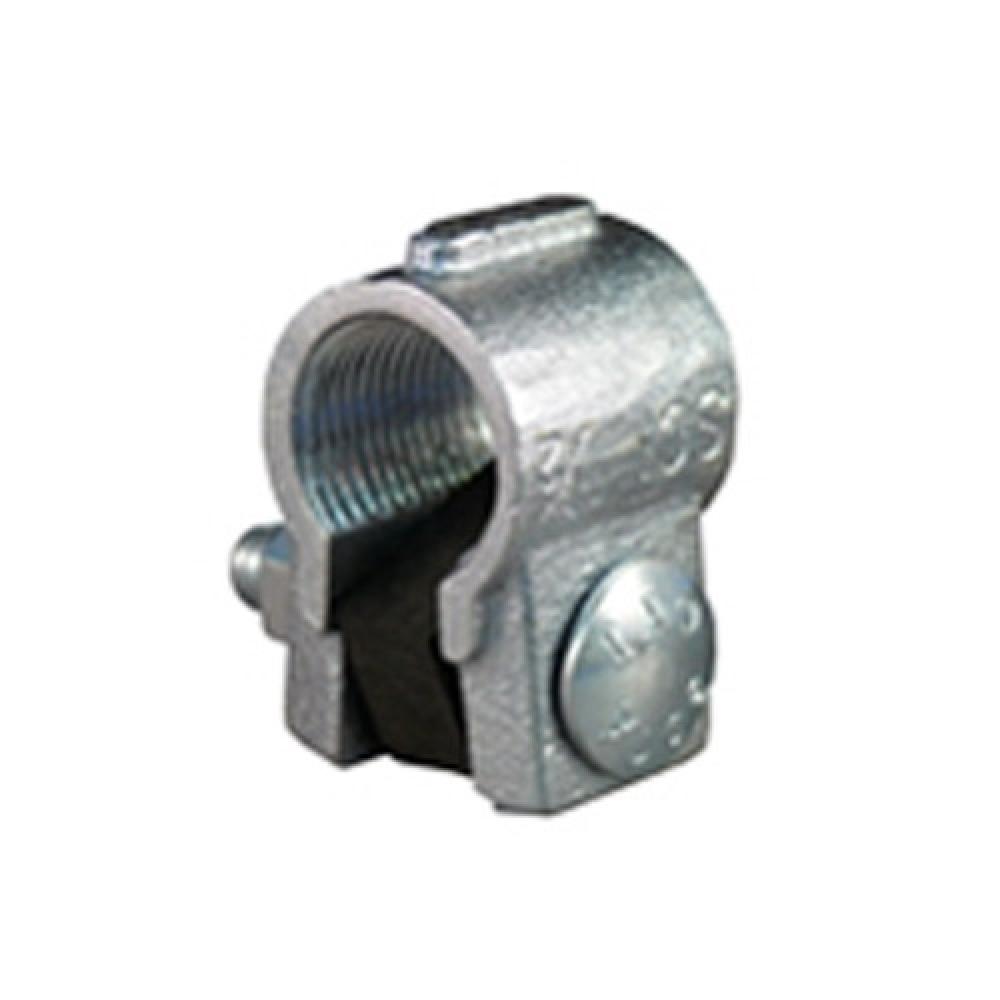

1 IN RIGID SPLIT COUPLING
Part Number: SCC-100
UPC: 00781381441537
Call for Price
- Manufacturer may be Out Of Stock.
Quantity:
Product Overview
Bolt-On SCC Series Split Coupling, Trade Size: 1 IN, Outside Diameter: 1-3/4 IN, Length: 2.63 IN, Flexibility: Rigid And IMC, Material: Malleable Iron Coupling, Steel Hardware, Neoprene Gasket, Connection: Threaded, Finish: Zinc Electropl
Specifications
Details
Product Height:
0.37"
Product Width:
6.20"
Product Length:
6.50"
Electrical Category:
Conduit and Fittings
Electrical Subcategory:
Conduit Fittings
Application:
For Threaded Rigid Conduit and IMC
Brand Name:
Appleton
Connection:
Threaded
Country Of Origin:
MX
Flexibility:
Rigid And IMC
Length:
2.63
Line Drawing Link:
Material:
Malleable Iron Coupling, Steel Hardware, Neoprene Gasket
Order Minimum:
10.000 EA
Order Multiple:
10.000 EA
Outside Diameter:
1-3/4
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Special Features:
Concretetight; Fast installation - slip bolt-on coupling over threaded end of one conduit section, butt the end of the second threaded conduit section to the first, slip bolt-on coupling to the center of the two conduit threads and tighten bolts; Provides
Standard:
UL 514B, UL File Number E14814, CSA C22.2 No. 18.4, CSA 702992 Certified, NEMA FB-1
Sub Brand:
Bolt-On
Trade Size:
1
Type:
SCC Series Split Coupling
UNSPSC:
39131707
Warranty Link:
Weight:
.420 L
