1-1/2 IN STRAIGHT BOX CONN

Appleton Electric

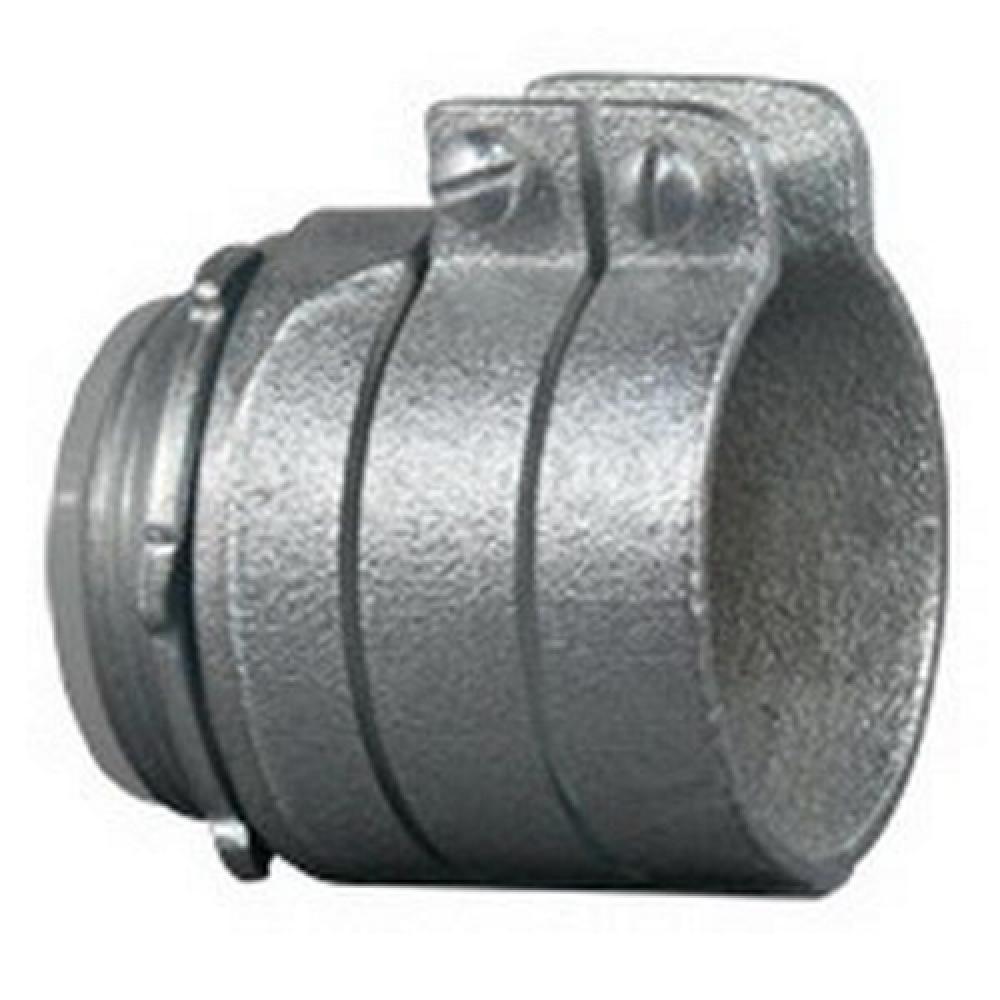

1-1/2 IN STRAIGHT BOX CONN

Part Number: 7485I
UPC: 00781381404167
Call for Price
  • Manufacturer may be Out Of Stock.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Straight Conduit Connector, Size: 1-1/2 IN, Conductor Range: 1.63 - 1.95 IN, Material: Malleable Iron, Finish: Zinc Electroplate, Length: 1.84 IN, Width: 2.69 IN, Thread Length: 0.56 IN, Standard: UL 514B, UL Listed: E14814, CSA Standard: C
Specifications
Details
Product Height:
0.72"
Product Width:
3.60"
Product Length:
9.30"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Application:
For Used To Ground And Secure Nonmetallic Sheathed And Service Entrance Cable to Boxes And Enclosures
Brand Name:
Appleton
Conductor Range:
1.63 - 1.95
Country Of Origin:
MX
Finish:
Zinc Electroplate
Line Drawing Link:
Line Drawing
Material:
Malleable Iron
Order Minimum:
5.000 EA
Order Multiple:
5.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
1-1/2
Spec Sheet:
Spec Link
Special Features:
Furnished with locknut; Male hub threads-NPS; Two screw; Insulated throat version
Standard:
UL 514B, UL Listed: E14814, CSA Standard: C22.2 No. 18.3, CSA Certified: 065178, NEMA FB-1
Type:
Straight Conduit Connector
UNSPSC:
39121419
Warranty Link:
Warranty Information
Weight:
.860 L
