M10-14R/SX RING NON-INS BTL

3M Electrical Products
M10-14R/SX RING NON-INS BTL

Part Number: M10-14R/SX
UPC: 00051128586839
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
3M™ Scotchlok™ Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
Specifications
Details
Product Height:
5.13"
Product Width:
6.75"
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
Terminals And Accessories
Electrical Subtype:
Electrical Terminals
Brand Name:
3M
Country Of Origin:
USA
Lead Time:
2.000 DA
Length:
9.3750 IN
Material:
Non-Insulated
Number Of Terminals:
50 per bottle
Order Minimum:
50.000 EA
Order Multiple:
50.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Spec Link
Special Features:
Standard
Standard:
UL and CSA
Stock Type:
Shelf Stock
Sub Brand:
Scotchlok

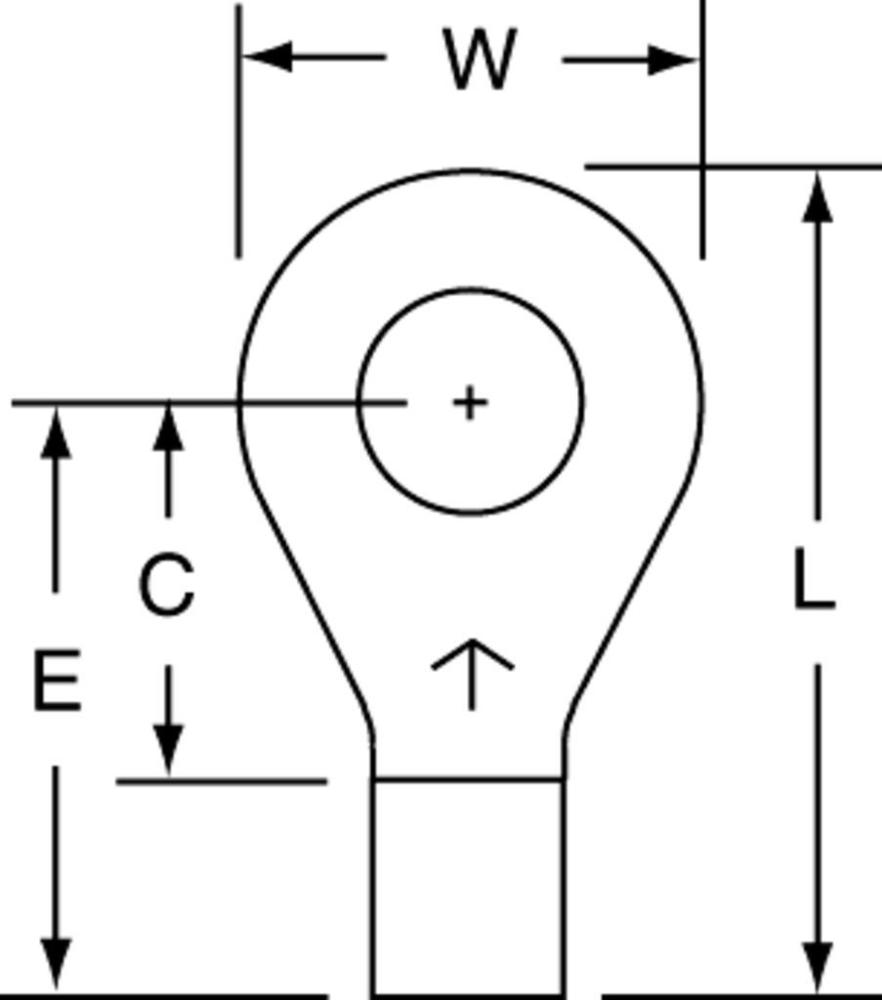

Tech Drawing Link:
Tech Drawing
Terminal Size:
12 - 10 AWG
Type:
Ring
UNSPSC:
39121432
Weight:
2.000 L
