7695-S-4-INV-3W QT-III 3C TERM KIT

3M Electrical Products
7695-S-4-INV-3W QT-III 3C TERM KIT

Part Number: 7695-S-4-INV-3W
UPC: 00054007047476
Call for Price
  • Manufacturer may be Out Of Stock.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Info & Guides
File
File

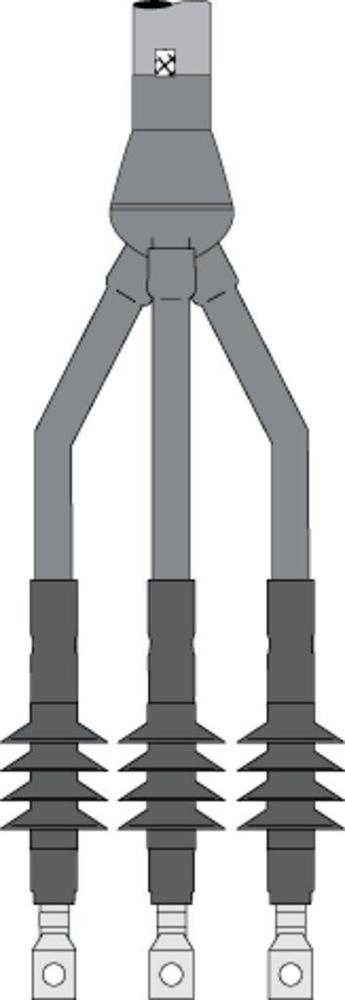

3M™ Cold Shrink QT III 7620 S & 7690 S Series Inverted Termination Kit includes 3 single conductor, skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.
Specifications
Details
Product Height:
15.70"
Product Width:
13.88"
Electrical Category:
Wire And Cable
Electrical Subcategory:
Cable Accessories
Electrical Subtype:
High Voltage Cable Termination Kit
Application:
Outdoor
Brand Name:
3M
Brochure:
Manufacturer Brochure
Cable Type:
Tape Shield; UniShield(R); Wire Shield
Conductor Size:
1000 kcmil; 300 kcmil; 350 kcmil; 400 kcmil; 500 kcmil; 600 kcmil; 700 kcmil; 750 kcmil; 800 kcmil; 900 kcmil
Country Of Origin:
USA
Installation Link:
Installation Instructions
Lead Time:
21.000 DA
Length:
19.9600 IN
MsdsURL:
https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSuUn_zu8l00xM829482Gmv70k17zHvu9lxtD7SSSSSS--
Number Of Terminals:
3
Order Minimum:
1.000 KT
Order Multiple:
1.000 KT
RoHS Compliance:
Under Review
Spec Sheet:
Spec Link
Tech Drawing Link:
Tech Drawing
Type:
QT-III
UNSPSC:
26121648
Voltage Rating:
15 kV; 25/28 kV; 5 kV; 8 kV
Weight:
0.200 L
